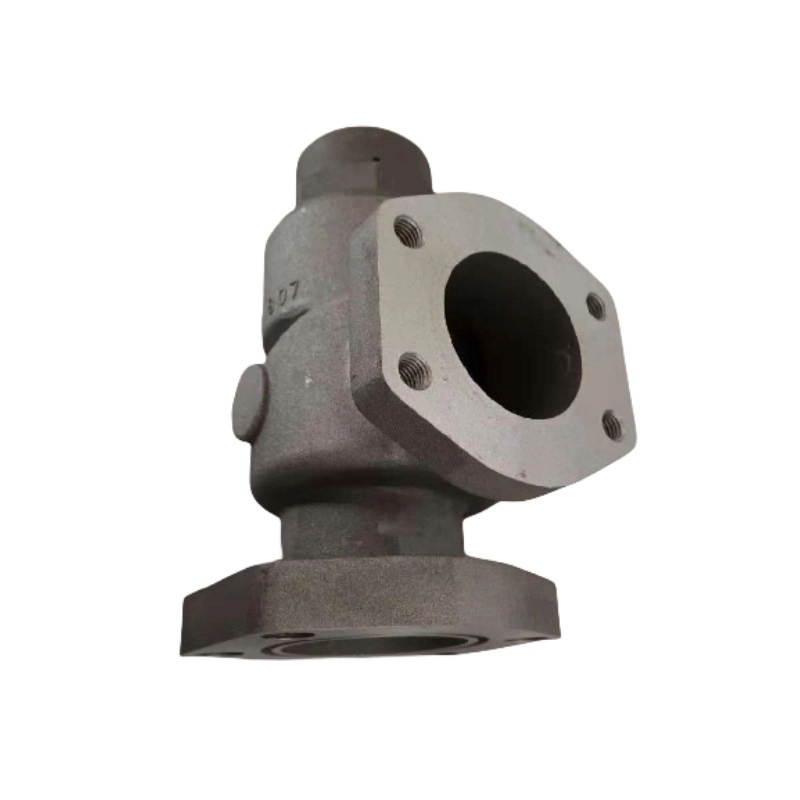

Ingersoll Rand Screw Air Compressor Minimum Pressure Valve – Part No. 23030901
Discover the Ingersoll Rand minimum pressure valve 23030901 for oil-injected screw compressors. Built with high-strength materials, this MPV ensures stable system pressure, prevents backflow, and enhances compressor reliability.
| Application |
Air Compressor |
|---|---|
| Material |
Aluminum ,Stainless Steel |
The minimum pressure valve (MPV) 23030901 is a critical control component specifically designed for Ingersoll Rand oil-injected screw air compressors. Its main role is to ensure that the compressor system maintains a stable minimum pressure in the air receiver and oil circuit during startup and operation. This prevents oil carryover, ensures smooth system pressurization, and protects the compressor elements from damage caused by low pressure conditions.
Working Principle
When the air compressor starts, the minimum pressure valve remains closed until the internal pressure reaches a preset threshold—typically around 4 to 5 bar. Once this pressure is achieved, the valve gradually opens, allowing compressed air to flow into the air receiver and downstream system.
During operation, the valve continuously regulates pressure balance to prevent sudden drops in the lubricating oil circuit, maintaining efficient oil separation and protecting bearings and rotors. When the compressor stops, the valve closes automatically to prevent backflow of compressed air into the oil separator tank.
Design and Construction
The 23030901 MPV is engineered for durability and precision.
- Valve Body: Made from high-strength aluminum alloy or brass, with an anodized or nickel-plated surface to resist corrosion caused by oil and condensate.
- Internal Spool and Spring: Manufactured from heat-treated stainless steel to ensure long-term elasticity and wear resistance under high-frequency operation.
- Sealing Elements: High-temperature-resistant fluororubber (Viton) or nitrile (NBR) seals guarantee airtight performance, even under continuous thermal cycling.
- Thread Connection: The valve adopts precision-machined BSP or NPT threads for reliable installation and leak-free performance.
Performance Features
- Maintains stable minimum pressure (4–5 bar) to protect compressor oil circulation.
- Prevents air backflow when the compressor stops, ensuring safety and efficiency.
- Reduces oil carryover by stabilizing pressure in the separator tank.
- High corrosion and temperature resistance for long service life.
- Low internal leakage and smooth pressure response, ensuring consistent system operation.
- Fully compatible with Ingersoll Rand oil-injected rotary screw compressors using part number 23030901.
Installation and Maintenance Tips
- Ensure the valve orientation and flow direction follow the markings on the body. Incorrect installation can cause delayed pressure build-up or air leakage.
- Before replacement, release system pressure completely and remove any residual oil to avoid contamination.
- Regularly check for carbon buildup or sticky movement caused by oil residue; clean the valve spool with non-corrosive solvent if necessary.
- Replace sealing elements every 5,000–8,000 working hours or as per compressor maintenance intervals.
- Use only genuine or high-quality compatible parts to maintain optimal compressor efficiency.
Quality Assurance
Each minimum pressure valve undergoes rigorous testing, including:
- Pressure endurance test at 1.5× rated pressure
- Air tightness test to detect internal or external leakage
- Flow calibration to ensure consistent opening pressure range
- Surface corrosion resistance and material hardness verification
These quality checks ensure that every valve meets or exceeds OEM standards for Ingersoll Rand compressors.
OEM Reference Information
- Part Number: 23030901
- Function: Minimum Pressure Valve
- Application: Ingersoll Rand Oil-Injected Screw Air Compressor
- Equivalent Replacements: Available for OEM and aftermarket systems with matching specifications.
Why Choose Our MPV 23030901
We provide precision-engineered air compressor spare parts built under strict quality control. Each valve is manufactured with CNC machining, inspected for tightness, pressure range, and response accuracy, and packaged to prevent contamination during storage or transport. Our MPVs ensure reliable compressor start-up, long component life, and reduced maintenance downtime.
