Oil-Injected Screw Air Compressor Use Minimum Pressure Valve Factory

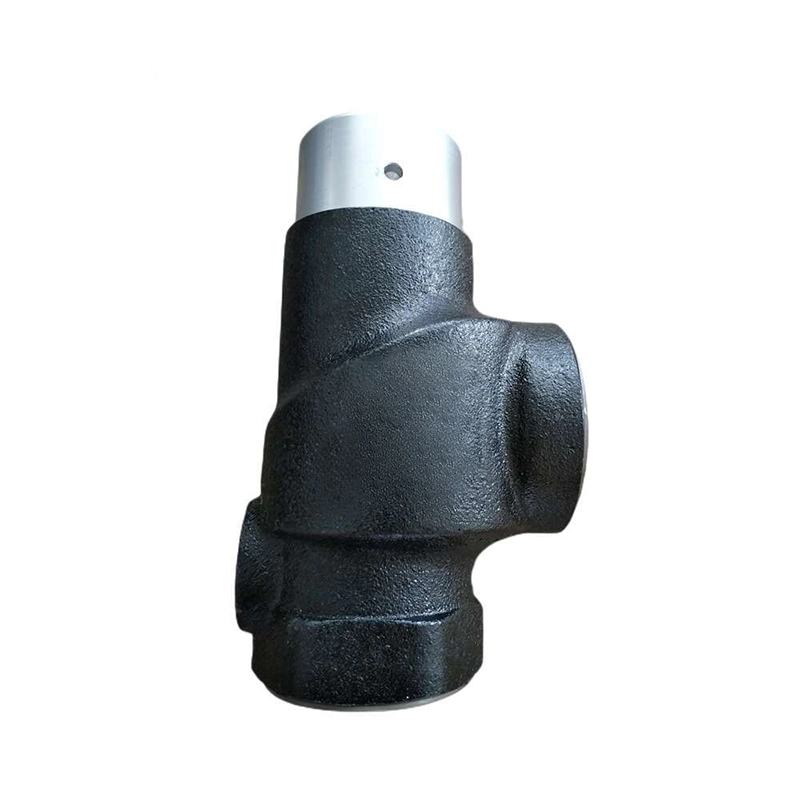

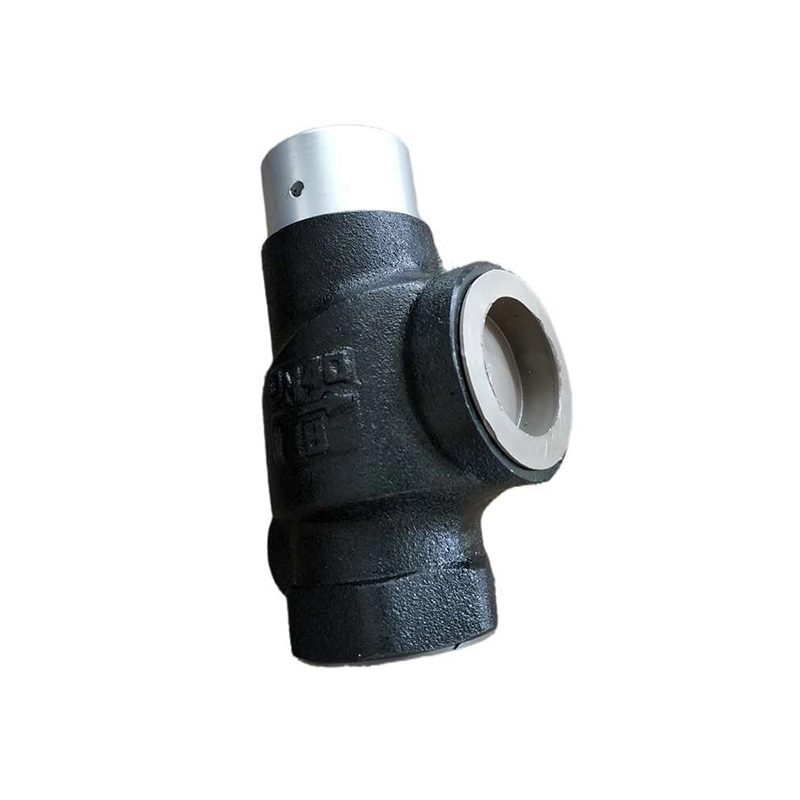

The 39475637 Minimum Pressure Valve is a precision-engineered pneumatic control component designed for oil-injected rotary screw air compressors. It ensures stable internal system pressure during startup and operation, preventing air and oil backflow while maintaining reliable lubrication and cooling performance. Built from high-strength brass alloy and corrosion-resistant internal components, this valve guarantees consistent function under continuous high-temperature, high-pressure environments.
| Application |
Air Compressor |
|---|---|
| Material |
Aluminum ,Stainless Steel |
In oil-injected screw compressors, system stability relies heavily on the minimum pressure valve. The 39475637 model serves as a pressure-retaining and non-return device at the compressor discharge line. Before air is released into the plant system, the valve keeps the internal pressure above the required threshold (typically 4–5 bar), ensuring oil circulation through the airend and oil separator.
Once the pressure reaches its calibrated value, the valve gradually opens, allowing compressed air to pass through while simultaneously sealing against reverse flow when the compressor stops or unloads. This controlled behavior prevents pressure surges, protects downstream filters, and maintains the integrity of the oil separator.
Detailed Structural Features
- Brass Valve Body: The main housing is crafted from high-density forged brass, providing excellent resistance to oxidation, oil mist, and thermal cycling.
- Precision-Ground Piston Assembly: The piston slides smoothly within a finely machined bore, reducing friction and avoiding sticking even after prolonged service.
- Stainless Steel Spring: Designed with a precise load rate to maintain consistent response pressure, ensuring accuracy within ±0.2 bar.
- Dual Sealing Rings: Incorporates high-performance fluororubber (FKM) O-rings and backup rings to withstand continuous exposure to hot compressed air and lubricants.
- Internal Flow Optimization: The internal channel geometry is optimized to reduce turbulence and minimize pressure loss, ensuring efficient air delivery.
Performance Advantages
Stable Minimum Pressure Regulation: Maintains correct oil pressure and airend lubrication during startup and transient conditions.
Superior Temperature Resistance: All materials are rated for continuous operation up to 180°C, suitable for heavy-duty compressor cycles.
Anti-Backflow Protection: Automatically closes upon pressure drop, preventing reverse air flow and oil contamination.
Low Maintenance Design: Smooth internal passages and corrosion-resistant surfaces minimize deposit buildup.
High Durability: Tested for over 100,000 opening and closing cycles under full operating pressure.
Working Principle
During the initial start of the compressor, the discharge pressure rises as the airend begins compressing air mixed with oil mist. The 39475637 valve remains closed until the internal pressure reaches the pre-calibrated opening point (approximately 4.5 bar). This allows the oil circuit to establish proper pressure for lubrication and cooling.
Once the threshold is met, the valve opens progressively, feeding air to the downstream system. When the compressor unloads or stops, it automatically closes, maintaining pressure within the oil separator and preventing oil backflow. This self-regulating function ensures both performance stability and mechanical safety.
Quality Control & Testing
Each 39475637 Minimum Pressure Valve is individually tested to meet or exceed OEM performance requirements.
- Hydraulic Pressure Test: Verifies leak-free sealing under 15 bar pressure.
- Cycle Endurance Test: Confirms operational stability through 100,000+ actuation cycles.
- Opening Pressure Calibration: Factory set and validated with ±0.1 bar tolerance.
- Thermal Aging Test: Simulates long-term exposure to compressor operating temperatures.
These procedures ensure that every valve delivers reliable service life and precise pneumatic performance.
Maintenance & Replacement Guidelines
- Clean the valve at every 2000–3000 operating hours to remove carbon or oil deposits.
- Check for seal elasticity and replace O-rings during each major service interval.
- Avoid over-tightening the valve during reinstallation—use a torque wrench to prevent deformation.
- Always replace the valve if it shows delayed opening, erratic pressure holding, or internal noise during operation.
Why Choose Our 39475637 Valve?
We specialize in precision-engineered compressor components built to meet demanding industrial standards. Each valve is manufactured using CNC machining, pressure testing, and dimensional inspection to ensure complete reliability. By using our replacement parts, you extend the lifespan of your airend, improve system efficiency, and reduce the risk of unplanned downtime.
Common FAQs
Q1: What is the typical lifespan of the 39475637 Minimum Pressure Valve?
A: Under normal industrial use, the valve typically lasts 10,000–12,000 running hours, depending on oil quality and operating conditions.
Q2: Can this valve be used as a replacement for other compressor brands?
A: Yes, the 39475637 model is designed to be OEM-equivalent and interchangeable with multiple compressor brands using similar specifications.
Q3: How can I confirm if this valve suits my compressor?
A: Provide your compressor brand, model, and serial number. Our team will assist with cross-referencing the part compatibility.
Q4: What are the signs of valve malfunction?
A: Common indicators include oil carryover, slow system pressurization, unstable discharge pressure, or continuous air leakage when the compressor is off.
