Ingersoll Rand Oil-Injected Screw Compressor Spare Parts MPV
High-flow minimum pressure valve (39477369 / 99289860 / 23521297) for Ingersoll Rand oil-injected screw compressors, available in DN40–DN65. Provides accurate startup control, stable discharge pressure, and long-term sealing reliability for industrial compressed air systems.
| Application |
Air Compressor |
|---|---|
| Material |
Aluminum ,Stainless Steel |

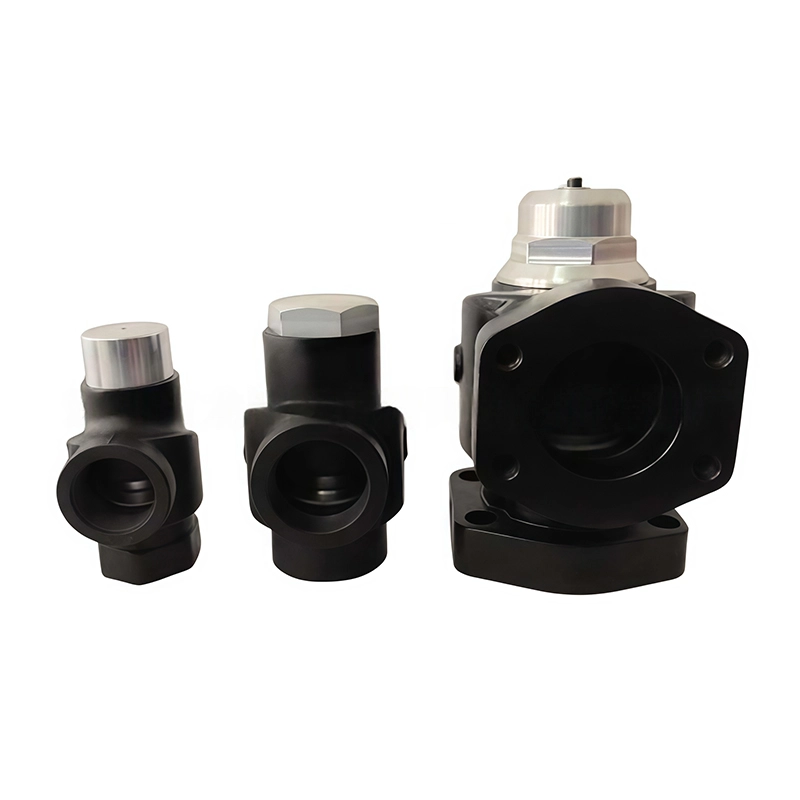

The Minimum Pressure Valve Assembly (MPV) — part numbers 39477369, 99289860, and 23521297 — is a critical protection and control component designed for Ingersoll Rand oil-injected rotary screw air compressors.
This high-capacity valve, available in DN40, DN50, and DN65 sizes, maintains sufficient internal pressure within the compressor system during startup and regulates air discharge under varying loads. It ensures continuous oil circulation, prevents reverse airflow, and stabilizes system operation across different capacity ranges.
The valve adopts a large-diameter flow structure, optimized for high-volume compressors, balancing flow performance, sealing reliability, and long-term durability under demanding industrial environments.
Working Principle
At startup, a screw air compressor requires internal pressure to reach a minimum threshold before air is released to the downstream network. The MPV remains closed until the separator tank pressure increases to the preset value — typically between 4.5 and 5.5 bar.
Once this threshold is achieved, the valve opens progressively, allowing compressed air to pass into the system while maintaining internal pressure to ensure effective oil atomization and bearing lubrication.
When the compressor unloads or stops, the valve immediately closes to prevent backflow from the air network into the compressor, thus avoiding oil carry-back, rotor reversal, or separator damage. This rapid response mechanism safeguards the entire air system against pressure surges and mechanical shock.
Key Technical Advantages
1. Precision Flow and Pressure Regulation
Each valve is precisely calibrated according to Ingersoll Rand specifications, ensuring accurate response to pressure variations. The integrated piston-spring assembly adjusts dynamically, maintaining stable air delivery even under fluctuating operating loads.
2. Robust Large-Diameter Design (DN40–DN65)
The wide flow channels are optimized to handle higher discharge volumes typical of medium and large compressors. This reduces internal resistance, improves airflow efficiency, and minimizes energy loss across the system.
3. Superior Material Composition
- Valve Body: High-strength nickel-plated brass or anodized aluminum alloy, providing both corrosion resistance and structural rigidity.
- Internal Components: Precision-machined stainless steel poppet and spring ensure wear resistance and fatigue durability.
- Seals: High-temperature FKM (Viton) or HNBR elastomers, compatible with compressor oil and resistant to oxidation.
4. Optimized Flow Dynamics
The internal geometry of the valve seat is developed using CFD (Computational Fluid Dynamics) analysis to achieve laminar flow with minimal turbulence. This ensures consistent opening behavior and reduced pressure drop across the valve.
Technical Specifications
| Specification | Description |
|---|---|
| Part Numbers | 39477369 / 99289860 / 23521297 |
| Brand Compatibility | Ingersoll Rand Screw Air Compressor |
| Nominal Diameter | DN40 / DN50 / DN65 |
| Valve Type | Minimum Pressure Valve |
| Operating Pressure Range | 0–16 bar |
| Opening Pressure | 4.5–5.5 bar |
| Valve Body Material | Nickel-Plated Brass / Aluminum Alloy |
| Internal Components | Stainless Steel |
| Seal Material | FKM (Viton) / HNBR |
| Medium | Lubricated Compressed Air |
| Max Operating Temperature | 120°C |
| Connection Type | Threaded or Flanged (per model) |
Manufacturing and Quality Assurance
Each Ingersoll Rand-compatible MPV is manufactured under ISO quality management standards.
Key inspection procedures include:
- Opening pressure calibration using certified pressure benches.
- Air-tightness test at 1.5× rated pressure.
- Leak and endurance testing under oil mist conditions for 72 hours.
- Dimensional and surface roughness checks using precision instruments.
- Cycle test validation to ensure consistent performance after repeated operation.
All valves meet CE and ISO safety and performance standards for compressed air equipment.
Installation and Maintenance Tips
- Install vertically with flow direction matching the arrow on the valve body.
- Use thread sealant or gasket to ensure tight connection with the separator tank.
- Avoid overtightening to prevent thread deformation.
- Inspect periodically (every 2000 hours) for carbon or oil residue on valve seat and poppet.
- Replace sealing elements during compressor overhaul or when leakage is detected.
- Maintain a clean intake and separator system to ensure stable valve performance.
Proper installation and periodic maintenance are crucial to extend the service life of both the valve and the compressor.
Why Choose This Replacement Valve?
This MPV offers OEM-level compatibility and precision calibration for Ingersoll Rand compressor systems.
Its optimized flow design, durable sealing materials, and precision machining guarantee consistent pressure regulation, reduced energy loss, and enhanced system protection.
Compared to generic alternatives, it delivers superior reliability, easier installation, and longer operational lifespan, making it a cost-effective choice for compressor maintenance and overhaul projects.
