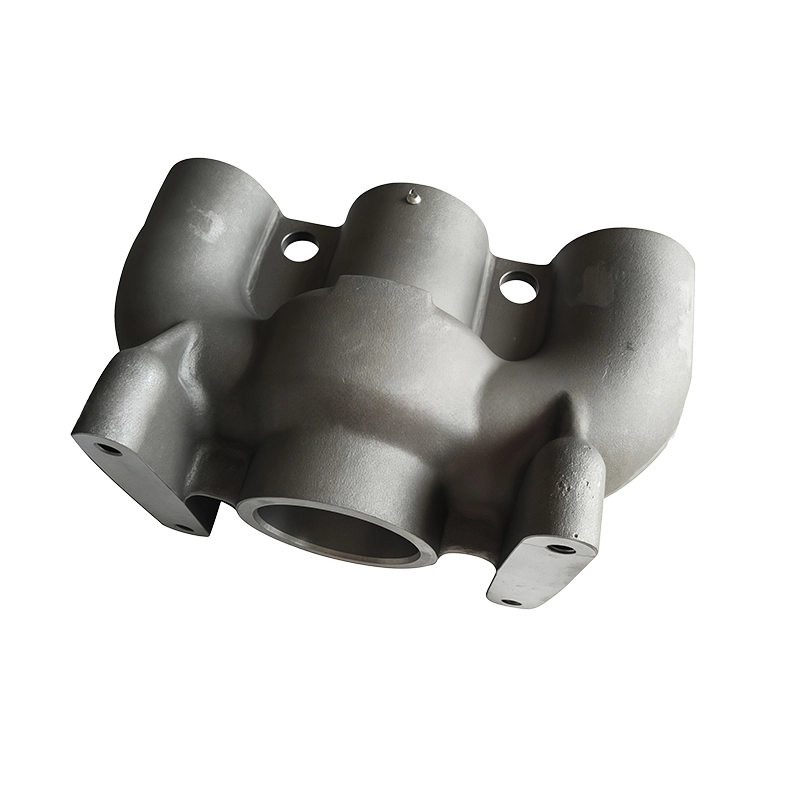

Oil-Injected Screw Air Compressor Minimum Pressure Valve MPV For Sale
High-quality Minimum Pressure Valve (P/N 1092049978) for oil-injected screw air compressors. Precision-engineered aluminum and stainless steel construction ensures stable system pressure, reliable oil circulation, and long-term performance
| Application |
Air Compressor |
|---|---|
| Material |
Aluminum ,Stainless Steel |

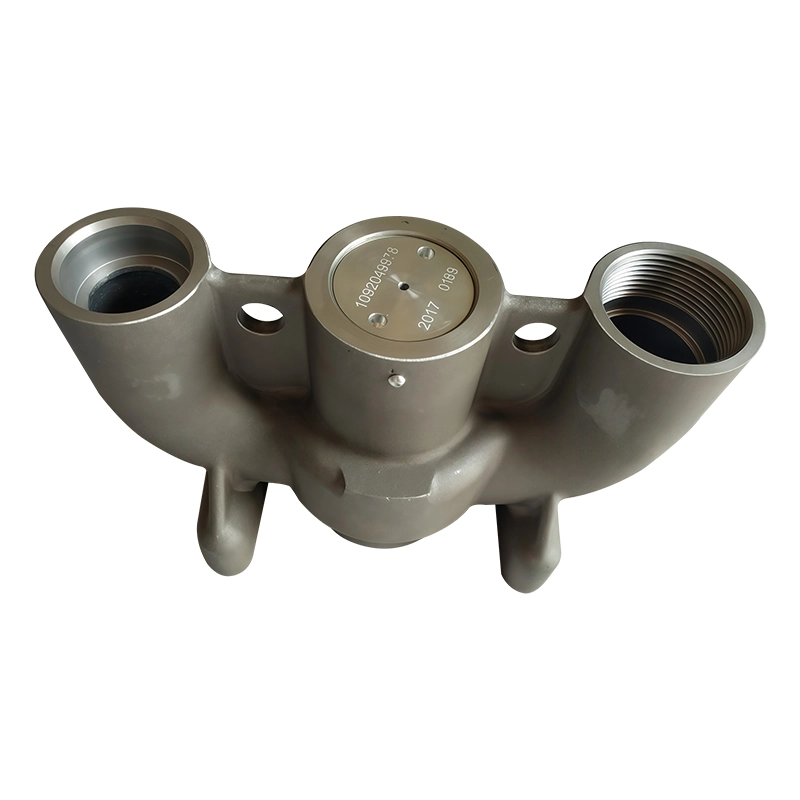

The Minimum Pressure Valve (MPV) plays a critical role in regulating internal system pressure during startup and maintaining stable oil circulation in oil-injected screw air compressors. The valve with part number 1092049978 is designed for precise air and oil management, ensuring the compressor reaches optimal operating pressure before connecting to the downstream system.
Manufactured with high-strength aluminum alloy housing and stainless steel valve components, this MPV is engineered for consistent pressure regulation, smooth airflow transition, and long-term durability under continuous-duty cycles. Its compact structure, tight sealing, and fast response make it an ideal replacement for leading compressor models that require stable minimum pressure control.
Working Principle
When the compressor starts, the airend generates compressed air mixed with lubricating oil. The system pressure must build up to a defined threshold (typically around 4–5 bar) before airflow is allowed to the external network. During this buildup stage, the minimum pressure valve remains closed, trapping pressure within the separator tank and ensuring proper oil return to the airend.
Once the target pressure is reached, the valve opens gradually, allowing compressed air to flow into the discharge line while maintaining a steady internal pressure. This controlled opening helps prevent oil carryover, avoids pressure shock, and stabilizes the air supply.
When the compressor unloads or shuts down, the valve closes automatically, preventing air backflow and oil reverse migration — maintaining system integrity and protecting both the separator and bearings from potential damage.
Structural & Material Features
1. Aerospace-Grade Aluminum Housing
The valve body is machined from 6061-T6 aluminum alloy, known for its excellent corrosion resistance, lightweight nature, and high tensile strength. This material allows the valve to withstand long-term exposure to compressed air containing oil mist and moisture without deformation or oxidation.
Each housing undergoes anodizing treatment to increase surface hardness and enhance resistance to wear and heat, ensuring consistent operation over years of service.
2. Stainless Steel Internal Assembly
Key moving components such as the piston, seat, and spring are made from SUS304 and SUS316 stainless steel, providing superior fatigue resistance and stability in high-pressure environments. The precision-polished piston surface minimizes friction, guaranteeing a smooth and consistent response even during rapid load changes.
3. Dual-Lip Seal Design
The sealing interface uses a dual-lip FKM (fluorocarbon) and PTFE composite structure, offering excellent compatibility with synthetic compressor oils and high-temperature conditions (up to 200°C). The inner lip provides static sealing, while the outer lip maintains dynamic sealing during pressure fluctuations — effectively eliminating internal leakage.
4. Calibrated Spring Mechanism
Each valve’s opening pressure is calibrated to exact specifications during assembly, using high-precision load test equipment. The stainless steel spring maintains its elasticity under repetitive operation, ensuring consistent control performance across thousands of cycles.
5. Streamlined Flow Path
The flow channel geometry is optimized to reduce turbulence and minimize pressure loss. This design supports efficient air delivery, maintaining system balance without energy waste or vibration.
Key Advantages
- Consistent Pressure Retention: Maintains minimum operating pressure for proper oil return and lubrication.
- Smooth Opening Dynamics: Reduces sudden air surges and protects downstream components.
- Anti-Backflow Protection: Ensures one-way operation, preventing reverse air or oil movement.
- Enhanced Material Durability: Resistant to oil corrosion, heat, and mechanical fatigue.
- Low Maintenance Requirements: Designed for easy inspection and long service intervals.
- High Reliability in Continuous Use: Withstands frequent loading/unloading cycles common in industrial compressors.
Manufacturing & Quality Control
Every Minimum Pressure Valve (1092049978) is produced under ISO-certified manufacturing processes with tight dimensional control.
- Leak Testing: 100% tested under pressure up to 15 bar for zero leakage.
- Pressure Calibration: Each spring is verified to match OEM-specified opening range.
- Cycle Life Test: Simulated operation exceeding 100,000 open-close cycles without performance degradation.
- Dimensional Inspection: CNC machining tolerances maintained within ±0.02 mm for critical surfaces.
Our strict quality management ensures compatibility with top-tier OEM compressor systems and guarantees long-term reliability.
Applications
This MPV is suitable for use in a wide range of oil-injected screw compressors, particularly in industrial environments that require continuous operation and precise air control.
Common applications include:
- Manufacturing plants and workshops
- Automotive and heavy machinery facilities
- Power generation and utility systems
- Air compressor service replacements for Atlas Copco, Ingersoll Rand, Sullair, Kaeser, and other global brands
The design is adaptable for both horizontal and vertical separator configurations, supporting flexible integration into modern compressor layouts.
Why Choose Our MPV Solutions
With years of experience in compressor system component engineering, we supply OEM-standard replacement valves designed for precise performance and long-lasting reliability. Our products combine material science expertise, fluid dynamic design, and precision assembly to deliver dependable solutions for all major compressor systems.
Choosing our Minimum Pressure Valve (1092049978) means ensuring your compressor operates efficiently, safely, and with minimal downtime.
