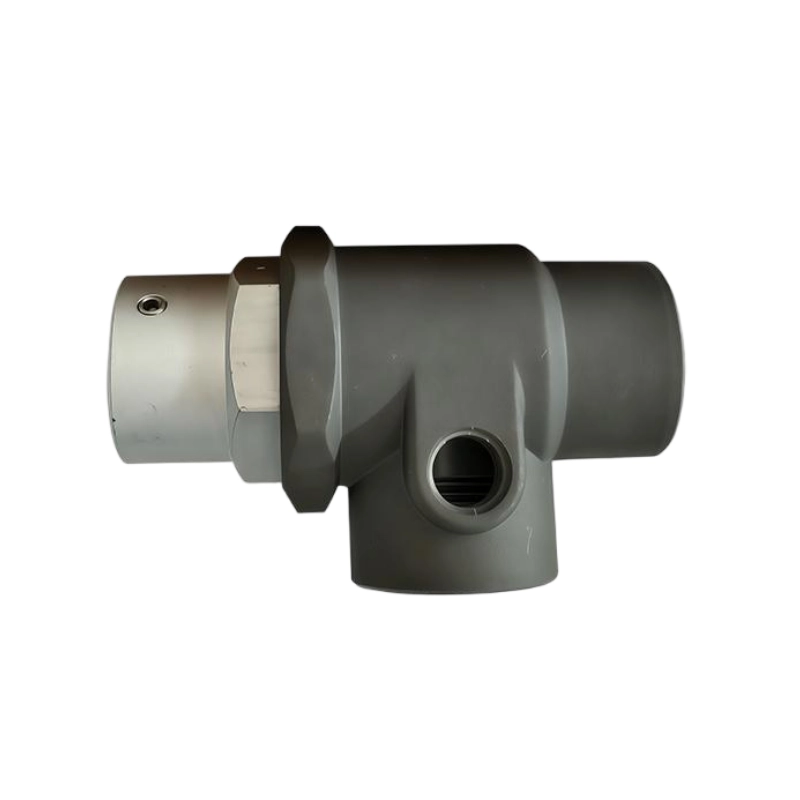

Screw Compressor Minimum Pressure Valve MPV Dn20A
High-quality Minimum Pressure Valve Dn20A for oil-injected screw compressors. Ensures stable air pressure, reliable oil circulation, and long service life with precision-engineered sealing and ISO-certified performance.
| Application |
Air Compressor |
|---|---|
| Material |
Aluminum ,Stainless Steel |
The Minimum Pressure Valve Dn20A is a precision-engineered safety and control component designed for oil-injected screw air compressors. Its primary function is to maintain the required minimum discharge pressure during compressor startup and operation, ensuring reliable lubrication, stable oil circulation, and consistent air delivery.
This valve type is widely applied in mid-to-large capacity compressor systems, especially those requiring high flow stability and fast response under dynamic load conditions. The Dn20A model combines an optimized flow channel with a reinforced sealing design to provide excellent performance and long-term durability, even in harsh industrial environments.
Function and Working Principle
When a screw compressor starts, the system must reach a minimum internal pressure before air is released to the downstream network. The Dn20A minimum pressure valve remains closed during initial startup, allowing pressure to build up within the separator tank. Once the set pressure is achieved — typically between 4.5 and 5.5 bar — the valve gradually opens, permitting compressed air to flow smoothly while maintaining sufficient oil circulation.
During unloading or shutdown, the valve closes immediately to prevent backflow of compressed air into the compressor airend. This process ensures the airend remains protected from reverse pressure, preventing rotor damage and maintaining optimal compressor efficiency.
Key Features and Advantages
- High Flow Design: Dn20A features a streamlined internal channel and enlarged port diameter (20 mm nominal), minimizing pressure loss and improving response speed.
- Stable Pressure Control: Equipped with a precision-calibrated spring and poppet assembly, the valve maintains consistent pressure thresholds even under fluctuating operating conditions.
- Enhanced Durability: Constructed from hardened aluminum alloy housing and corrosion-resistant stainless steel internals, ensuring reliable performance in high-temperature, oil-rich environments.
- Optimized Sealing System: Uses fluorocarbon (FKM) O-rings and a polished seat surface, effectively reducing leakage and extending service intervals.
- Easy Maintenance: Modular design enables straightforward disassembly for inspection or cleaning without disturbing the main line connections.
- Wide Compatibility: Suitable for a variety of oil-injected screw compressor brands and models using DN20 pipeline connections or equivalent pressure settings.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Dn20A |
| Type | Minimum Pressure Valve |
| Nominal Port | DN20 |
| Working Pressure | 0–16 bar |
| Opening Pressure | 4.5–5.5 bar |
| Material | Aluminum Alloy Body + Stainless Steel Components |
| Sealing Material | FKM (Viton) |
| Operating Medium | Lubricated Compressed Air |
| Temperature Range | -10°C to +120°C |
| Connection Type | Threaded or Flanged (optional) |
Structure and Material Details
The valve body is made from high-strength aluminum alloy, providing a balance between weight reduction and mechanical rigidity. The valve seat and disc assembly are precisely machined from AISI 304 stainless steel, ensuring resistance to corrosion and mechanical wear.
The spring is made from heat-treated carbon steel, with excellent fatigue resistance under continuous cycling. Sealing elements utilize oil-resistant FKM rubber, maintaining elasticity and reliability in contact with lubricated air and oil mist.
Quality Control and Testing
Every Dn20A minimum pressure valve is subjected to a rigorous multi-stage quality assurance process:
- Pressure endurance testing at 1.5× rated pressure to verify safety margins.
- Opening and closing cycle tests (≥50,000 cycles) to ensure long-term stability.
- Airflow performance testing to confirm consistent pressure drop across varying flow rates.
- Leakage inspection under both static and dynamic conditions.
- Dimensional verification using CNC coordinate measurement equipment for precise tolerances.
These steps guarantee that each valve meets or exceeds OEM performance expectations.
Installation and Maintenance Guidance
- Install the Dn20A valve vertically, with the flow direction following the indicated arrow.
- Ensure all piping and fittings are free from debris, oil sludge, or carbon deposits before assembly.
- Check the opening pressure after installation using a pressure gauge to verify calibration accuracy.
- Perform regular inspection and cleaning every 2,000–3,000 operating hours to remove possible carbon or oil accumulation.
- Replace the sealing rings during major compressor maintenance cycles to maintain airtight performance.
Why Choose the Dn20A Valve?
Unlike conventional minimum pressure valves, the Dn20A model emphasizes flow efficiency and pressure accuracy under continuous operation. Its mechanical design minimizes turbulence and ensures smooth airflow, while its advanced sealing materials extend maintenance intervals. This makes it a cost-effective and high-performance replacement solution for both OEM and aftermarket compressor users.
