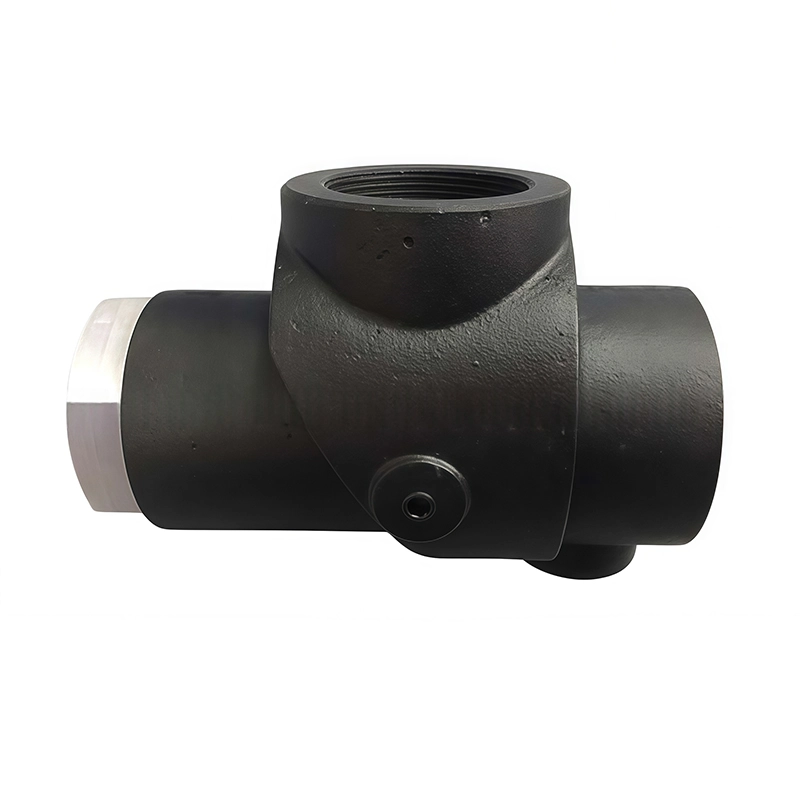

Minimum Pressure Valve MPV for Ingersoll Rand Screw Compressor Parts
Durable minimum pressure valve 85540029 designed for Ingersoll Rand oil-injected screw compressors. Provides stable pressure control, anti-leak performance, and long service life with precision-engineered brass and stainless steel construction.
| Application |
Air Compressor |
|---|---|
| Material |
Aluminum ,Stainless Steel |
The Minimum Pressure Valve 85540029 is an essential control component used in Ingersoll Rand oil-injected screw air compressors. It is engineered to maintain the compressor’s internal pressure at a safe minimum level during startup and operation, ensuring proper oil circulation and stable discharge air pressure.
Designed for heavy-duty and continuous-use environments, this valve integrates advanced flow control geometry, precision balancing, and anti-fatigue sealing to deliver consistent performance across extended operation cycles. It is particularly suitable for industrial applications requiring uninterrupted air supply and high operational reliability.
Function and Working Principle
During compressor startup, the air/oil separator tank must reach a certain pressure threshold before air can enter the downstream system. The 85540029 minimum pressure valve remains closed at first, allowing internal pressure to build up. Once the set threshold—typically around 4.5 to 5.5 bar—is reached, the valve opens gradually, enabling compressed air to flow out while maintaining enough pressure to ensure continuous lubrication inside the airend.
When the compressor stops or unloads, the valve closes rapidly to prevent reverse airflow from the system into the compressor. This avoids rotor reversal, oil backflow, and bearing stress, thereby protecting both the airend and the separator tank.
Key Technical Features
- Precision Pressure Regulation:
The internal piston-spring mechanism is factory-calibrated for Ingersoll Rand pressure ranges, ensuring accurate response and stable control under dynamic load variations. - High Flow Efficiency:
The flow passage and seat geometry are optimized through CFD simulation to reduce turbulence and minimize pressure loss, improving energy efficiency. - Durable Construction:
Built with nickel-plated brass housing and stainless steel internal parts, the valve resists corrosion from oil aerosols and high-temperature air mixtures. - Reliable Sealing:
The sealing system uses high-performance FKM (Viton) O-rings with excellent resistance to oil, temperature, and oxidation, ensuring zero leakage during long-term service. - Extended Lifespan:
The spring and piston assembly undergo anti-fatigue heat treatment, maintaining elasticity and response accuracy even after 50,000+ operating cycles. - Compact and Serviceable Design:
The valve’s modular structure allows for easy removal and servicing without disassembling the main separator tank.
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | 85540029 |
| Brand Compatibility | Ingersoll Rand Screw Air Compressor |
| Valve Type | Minimum Pressure Valve |
| Operating Pressure Range | 0–16 bar |
| Opening Pressure | 4.5–5.5 bar |
| Body Material | Nickel-Plated Brass |
| Internal Components | Stainless Steel |
| Sealing Material | FKM (Viton) |
| Operating Medium | Lubricated Compressed Air |
| Temperature Range | -10°C to +120°C |
| Connection Type | Threaded DN20 (customizable) |
Structure and Material Highlights
The nickel-plated brass body combines high strength and corrosion resistance, ideal for environments with oil vapor and condensed moisture.
The poppet and seat are machined from AISI 304 stainless steel with mirror polishing to ensure tight contact and smooth movement.
The spring system is designed with optimal stiffness to maintain precise control under variable loads, while Viton O-rings ensure reliable sealing against oil and temperature variations.
This blend of materials not only improves mechanical integrity but also extends the valve’s operational service life significantly compared to standard models.
Installation and Maintenance Tips
- Install the valve vertically with the flow direction indicated on the body.
- Clean all pipes and connections thoroughly before installation to prevent debris damage.
- Check the valve’s opening pressure after the first 100 hours of operation.
- Perform cleaning every 2,000–3,000 operating hours to remove carbon deposits or oil residues.
- Replace seals during major compressor overhauls to maintain consistent performance.
- Avoid overtightening the valve when connecting to the separator tank to prevent thread deformation.
Why Choose Our Replacement MPV?
Compared with generic replacements, this valve is specifically engineered to match Ingersoll Rand’s pressure profiles and flow characteristics.
It minimizes startup time, enhances lubrication reliability, and protects the airend from reverse flow or pressure shock. With its robust construction and exact pressure calibration, it provides a cost-effective and maintenance-friendly solution for long-term compressor operation.
