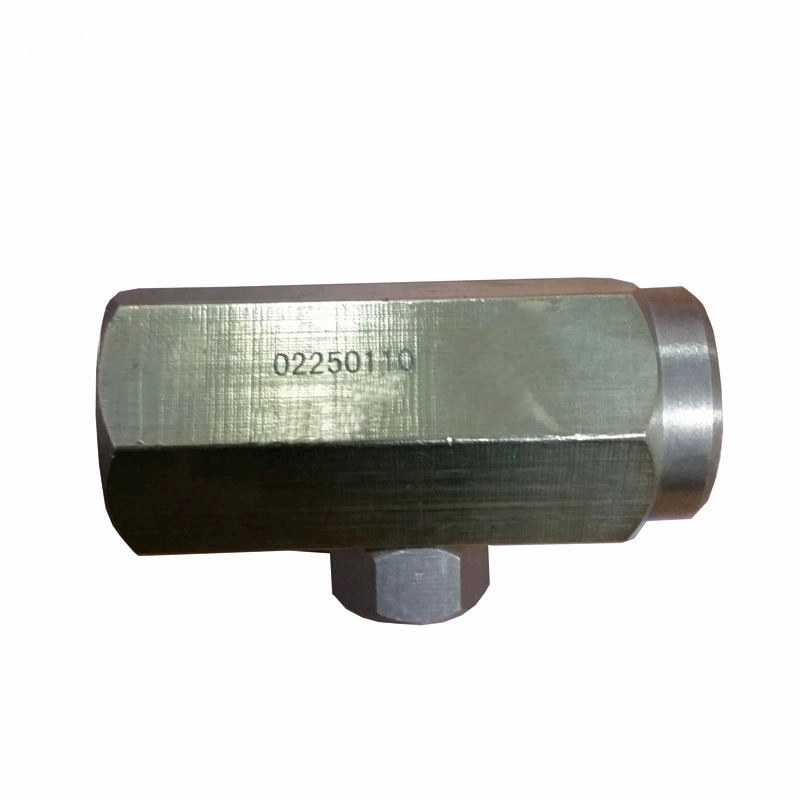

Sullair Screw Air Compressors Check Valve 02250110 Supplier
The Sullair 02250110 check valve is engineered to provide reliable one-direction flow control within the compressor’s air system, ensuring stable pressure retention, preventing reverse airflow, and protecting key components such as the airend, separator tank, and minimum pressure valve. Built for high-load industrial environments, this valve delivers long-term sealing stability and precise response under variable pressure conditions.
| Application |
Air Compressor |
|---|---|
| Material |
Stainless Steel |
The 02250110 check valve is a critical protection component used across Sullair screw compressor platforms. Its primary role is to ensure compressed air flows in only one direction—from the airend discharge into the separator tank—while preventing any reverse movement that could damage the rotor set or cause startup back-pressure.
Compared with general-purpose check valves, Sullair’s system demands faster response time, lower pressure drop, and higher thermal stability, as it operates directly at the airend outlet where both temperature and vibration levels are significantly higher. This valve is designed to withstand these conditions while maintaining consistent sealing integrity.
Function and Importance in Sullair System Architecture
Sullair compressors are known for their stable airflow design and high-efficiency airend structure. The check valve is integrated into this system as a safety and performance-critical node:
- Prevents Reverse Airflow When the Compressor Stops
Once the motor shuts down, the check valve closes instantly to prevent high-pressure air in the separator tank from pushing backward into the airend, avoiding rotor drag or reverse rotation. - Helps Maintain Internal Pressure During Startup
By stopping pressure loss, it ensures the minimum pressure valve can develop the required internal pressure quickly, enabling proper oil circulation and sealing formation. - Reduces Pressure Drop Across the System
The internal flow path of the 02250110 is engineered to minimize turbulence, ensuring steady airflow and helping maintain energy efficiency. - Protects Airend and Separator Components
Reverse flow can cause sudden impact loads. This valve prevents these shock loads, extending component life.
Internal Structure & Sealing Design
The design of 02250110 emphasizes durability, sealing performance, and resistance to high-temperature air discharge conditions:
- Hardened Stainless Steel Valve Plate
Ensures long wear life and prevents deformation under repeated opening and closing cycles. - High-Temperature Elastomer Seal
Formulated for continuous exposure to hot, oil-laden compressed air without hardening or swelling. - Optimized Spring Tension
Provides a balanced response—closing instantly on pressure decay but allowing free airflow with minimal resistance during operation. - Precision-Machined Valve Body
Manufactured with tight tolerances to reduce leakage paths and guarantee consistent pressure retention.
This combination ensures reliable sealing even under elevated discharge temperatures typical of Sullair compressors.
Material Engineering & Durability Features
To support heavy industrial duty cycles, the valve is produced using materials configured for long-term reliability:
- Body: corrosion-resistant alloy steel suitable for humid or oil-rich environments
- Internal components: anti-fatigue spring steel that maintains elasticity through millions of cycles
- Seals: long-life high-temp elastomers with excellent compression set resistance
These materials ensure stable performance even in high-duty Sullair applications such as continuous production lines, mining, and high-temperature workshop environments.
Application Scenarios in Sullair Systems
The 02250110 check valve is commonly installed in the discharge circuit of:
- Stationary Sullair screw compressors
- Oil-injected systems requiring stable internal pressure formation
- Units operating under fluctuating load or frequent start-stop cycles
- High-temperature, high-humidity workshops
- Facilities requiring long-duration continuous operation
Its durability and fast reaction make it well-suited for these demanding operating environments.
Manufacturing & Quality Control
Every valve undergoes strict process control to ensure OEM-level performance:
- Precision CNC machining of housing and flow path
- Fatigue testing of spring mechanisms
- High-pressure air sealing tests
- Thermal aging simulation on elastomer components
- Backflow resistance validation
- Dimensional inspection under OEM standards
This guarantees stable long-term function across a wide range of pressures and temperatures.
Maintenance & Inspection Recommendations
Although the check valve is simple in design, its reliability has a major impact on compressor safety. Periodic inspection helps avoid system instability:
- Look for delayed valve closing or reverse-flow noise after shutdown
- Check for wear or carbon buildup on valve plate
- Inspect seal aging, hardening, or deformation
- Monitor for pressure decay in the separator tank after stopping
- Replace immediately if backflow or sluggish operation is detected
Timely replacement ensures stable pressure retention and protects the compressor airend from reverse load.
