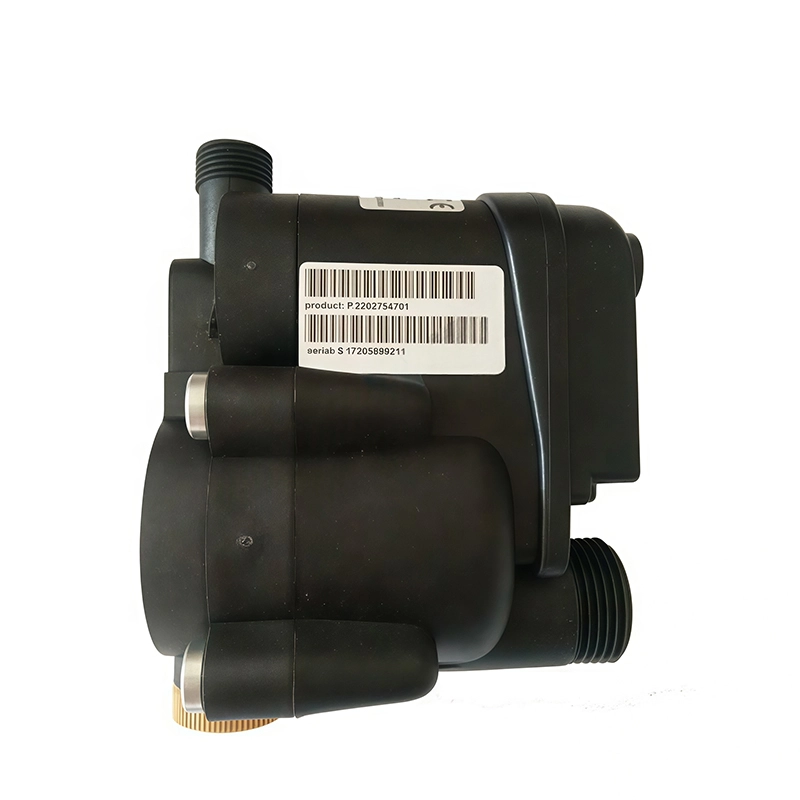

Automatic Drain Valve 2202754701 Atlas Copco Screw Air Compressors Kit
The Atlas Copco 2202754701 automatic drain valve ensures continuous and efficient condensate removal, helping maintain stable air pressure, protect pneumatic components, and reduce manual maintenance. Built for harsh industrial environments with reliable cycle control and robust internal sealing.
| Application |
Air Compressor |
|---|---|
| Material |
Plastic ,Stainless Steel |
The Atlas Copco 2202754701 Automatic Drain Valve is engineered for continuous condensate discharge in compressed air systems, maintaining clean internal channels and preventing moisture-induced failures. Unlike manual drains, this unit activates automatically based on internal float control, ensuring stable operation even under varying load conditions. Its durable structure, precise discharge timing, and compatibility with major Atlas Copco compressor models make it an essential component for system reliability and long service life.
Structural Design & Functional Principles
This drain valve uses a float-actuated mechanism to sense condensate levels in real time. As accumulated water rises to a preset threshold, the float triggers the discharge cycle, opening the valve seat and allowing moisture to be expelled instantly. Once the level drops, the valve closes tightly, preventing unnecessary air loss.
The internal passage adopts a smooth-flow design to minimize clogging caused by oil-water emulsions or particulates. Combined with high-strength seals and a corrosion-resistant body, the valve maintains stable responsiveness throughout long-term use.
Materials & Durability
To withstand demanding working environments, the valve body is manufactured from corrosion-resistant alloys suitable for continuous exposure to condensate, oily residue, and fluctuating temperatures.
Its internal moving parts receive anti-wear surface treatment that reduces friction and ensures accurate float movement. Sealing components are made from high-elasticity, oil-resistant materials to maintain airtight performance even after thousands of operating cycles.
These material choices collectively ensure consistent discharge performance and extended operational life with minimal maintenance.
Performance Advantages
The 2202754701 model is designed to deliver steady performance under real-world industrial conditions.
Its automatic operation prevents water accumulation that could otherwise lead to rusting pipes, pressure drop, or damage to downstream tools. With a fast reaction time and strong resistance to contaminants, the valve minimizes the risk of blockage and supports stable pressure output.
Users also benefit from reduced manual drainage work, fewer shutdowns, and improved energy efficiency due to its low air-loss design.
Compatibility with Atlas Copco Compressors
This automatic drain valve is developed to fit a wide range of Atlas Copco screw and piston air compressors, condensate separators, and air receivers. Its connection dimensions and functional parameters align with Atlas Copco’s original system requirements, ensuring seamless installation and consistent operation without additional adjustments.
Whether used in workshop compressors or continuous-duty industrial lines, the valve integrates smoothly with OEM specifications.
Quality Control & Testing
Each valve undergoes multi-stage factory testing, including sealing inspection, discharge sensitivity calibration, and prolonged cycle simulation. This ensures that each unit responds accurately to condensate levels and maintains airtight performance under both low-load and high-load conditions.
Mechanical strength testing also verifies that the valve can withstand system pressure fluctuations and temperature changes without deformation or performance decline.
Installation & Maintenance Notes
Installing the 2202754701 is straightforward, requiring only proper alignment with the condensate outlet and ensuring the float chamber is positioned upright. Routine checks include confirming that the discharge outlet is free of obstructions and that no oil sludge accumulates around the valve seat area.
Regular monitoring ensures optimal discharge efficiency and further prolongs the lifespan of both the valve and the overall compressed air system.
