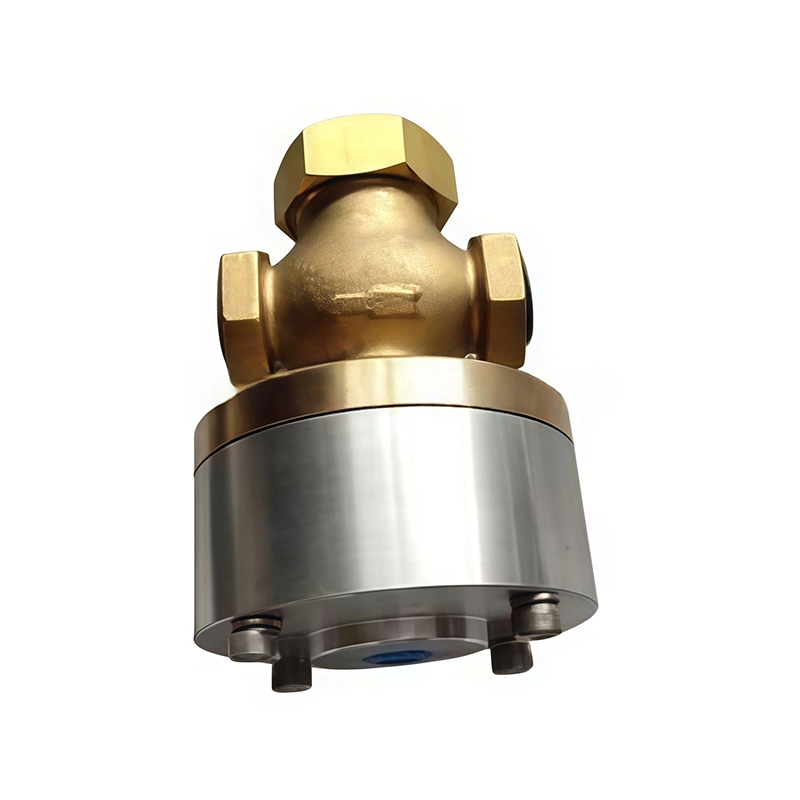

Blowdown Valve 02250069-820 for Sullair Air Compressors
The 02250069-820 blowdown valve is engineered for Sullair screw air compressors to provide controlled system depressurization during shutdown. Built with corrosion-resistant materials, precision-machined internals, and optimized flow stability, it ensures safe pressure release, reduced system wear, and consistent compressor performance.
| Application |
Air Compressor |
|---|---|
| Material |
Stainless Steel |
The Sullair Blowdown Valve 02250069-820 is a key safety and operational component that manages the internal pressure release when the compressor transitions to shutdown or unload mode. By venting residual air from the separator tank and system lines, it prevents backpressure, reduces startup load for the next cycle, and helps protect sensitive pneumatic components from pressure shock. This version is specifically developed to match Sullair system characteristics, providing accurate flow behavior and long operational stability.
Key Features & Technical Strengths
1. Optimized Pressure-Release Performance
This blowdown valve is engineered to open and close under precisely controlled thresholds, ensuring smooth depressurization without sudden bursts of air. The internal flow passages are polished and balanced to minimize turbulence, reducing noise and lowering mechanical wear on the valve seat.
2. High-Strength, Corrosion-Resistant Materials
The valve body is produced using industrial-grade steel or aluminum alloy with anti-corrosive surface treatment, allowing it to withstand environments where moisture, oil vapor, and temperature fluctuations are common. The internal spring and sealing components use heat-treated alloys and oil-resistant elastomers to maintain consistent elasticity and sealing integrity.
3. Reliable Sealing for Long Service Life
The dynamic sealing surfaces are machined to tight tolerances, providing a firm seal during compressor operation while ensuring predictable release during shutdown. This helps maintain tank pressure stability, reduces leak losses, and improves overall energy efficiency.
4. Stable Operation in Continuous Cycles
Screw air compressors operate through frequent load/unload cycles. This valve is built to handle high cycle frequency without fatigue deformation. The seat hardness, spring preload, and guide alignment are all optimized to maintain long-term reliability.
5. Direct Compatibility With Sullair Systems
Model 02250069-820 matches Sullair’s standard piping configuration, mounting dimensions, and pressure management logic. Installation is straightforward, requiring no modifications to the compressor’s control or piping system.
How the Blowdown Valve Works
During compressor shutdown, the control system signals the blowdown valve to open. The valve then vents the air trapped inside the separator tank and discharge line to atmospheric pressure. This reduces starting torque for the next run, protects check valves and separator components, and ensures smooth restart behavior.
A properly functioning blowdown valve prevents issues such as:
- Hard starting or motor overload
- Excessive pressure spikes
- Separator element stress
- Unstable system unloading
Material & Manufacturing Quality
Our blowdown valve is manufactured through CNC precision machining, ensuring uniform geometry and dimensional stability. The valve seat and plunger undergo fine grinding to achieve a low-friction sealing interface. Additional quality measures include:
- Pressure leak testing under elevated conditions
- Cycle durability testing
- Surface hardness verification
- Seal compatibility testing with compressor lubricants
Every unit is checked to match OEM performance benchmarks.
Installation & Compatibility
This blowdown valve is suitable for a wide range of Sullair screw air compressor models that specify 02250069-820 as the replacement part. Installation requires only basic tools, and the valve integrates seamlessly with the machine’s unload and shutdown control logic.
Maintenance Recommendations
Although the valve is built for long service life, regular inspection ensures optimal performance. Recommended checks include:
- Verifying smooth opening/closing behavior during shutdown
- Checking for oil contamination or carbon buildup at the outlet
- Ensuring no leakage when the compressor is running
- Replacing seals if performance drops or cycle response becomes slow
Maintaining the blowdown valve helps preserve the air compressor’s start-up efficiency and overall reliability.
OEM Cross Reference
Sullair Part Number: 02250069-820
(Ensure compatibility by confirming with your compressor model and service manual.)
