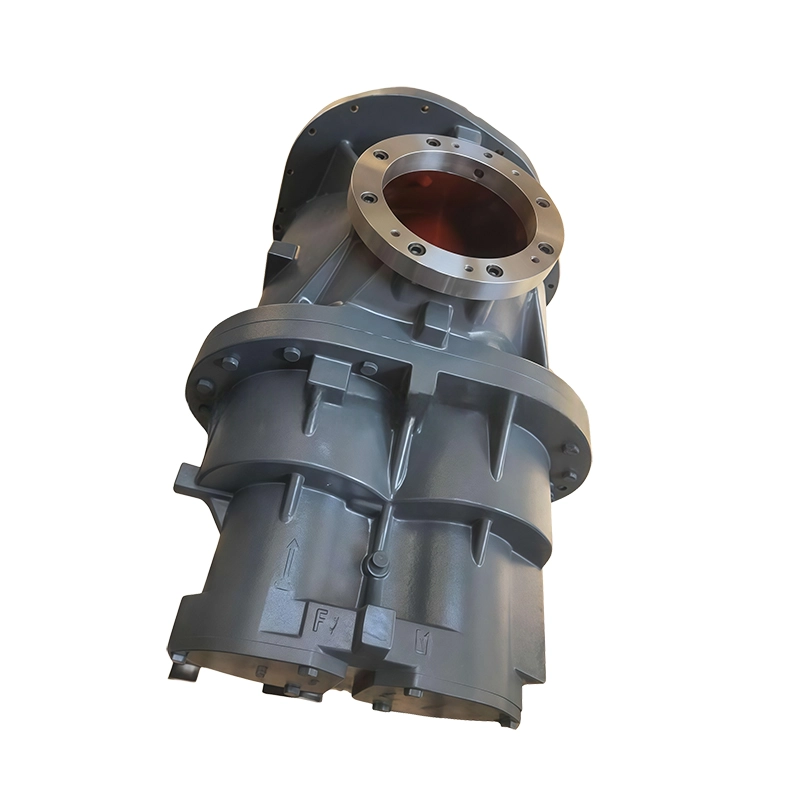

Atlas Copco Compressed Air System Components Air End Airend 1616735200
Atlas Copco Screw Air Compressor Air End 1616735200 — energy-efficient, precision-balanced, and OEM-compatible replacement air end for Atlas Copco GA series compressors. Built for high performance and long life.
| Application |
Screw Air Compressor |
|---|---|
| Material |
Stainless Steel |
The Atlas Copco 1616735200 Screw Air Compressor Air End is an OEM-quality replacement unit designed to restore your compressor’s peak performance with exceptional air delivery efficiency. Built for continuous industrial operation, this air end combines advanced rotor geometry, optimized oil flow, and precision-balanced components to deliver long-lasting reliability and reduced energy consumption.
It is engineered for users who demand consistent output under high pressure and high-speed rotation, making it ideal for factories, workshops, and energy-intensive production lines.
Parameter | 1616735200 Air End |
Rated Pressure | 8-13 bar (116-188 PSI) |
Rated Airflow | 9.2-12.5 m³/min (325-441 CFM) |
Rotor Lobe | Male:5 / Female:6 |
Housing Material | QT600-3 Ductile Iron |
Weight | 72kg (158.7 lbs) |
Core Features and Advantages
- High-Efficiency Rotor Design:
The rotors feature a new-generation asymmetric profile, optimized for maximum compression with minimal internal leakage. This design increases airflow per rotation, enhancing energy efficiency and reducing power costs. - Superior Sealing Performance:
Advanced end-face sealing technology and precision bearing configuration ensure stable compression under both low and high load conditions, minimizing internal air losses. - Dynamic Balancing and Smooth Operation:
Each rotor undergoes high-speed dynamic balancing and vibration calibration. The result is a smoother running unit that maintains excellent balance even at high RPMs, reducing noise and extending bearing life. - Optimized for High-Pressure Applications:
The air end’s reinforced rotor shaft and thermally stable housing structure provide reliable performance in demanding environments with elevated discharge pressures.
Material and Machining Process
Constructed from high-grade alloy steel and ductile iron, the 1616735200 air end delivers both structural integrity and thermal stability.
Manufacturing processes include:
- CNC Precision Machining: Guarantees micron-level accuracy and consistent rotor meshing.
- Nitriding Surface Treatment: Enhances rotor hardness and wear resistance for prolonged use.
- Temperature-Controlled Assembly: Ensures precise clearances and alignment for maximum efficiency.
- Automated Quality Inspection: Each component is laser-measured before assembly to maintain ISO-certified accuracy.
These steps ensure that every unit leaving the KINTON facility meets strict performance standards equivalent to original Atlas Copco equipment.
Quality Control and Testing
All air ends undergo a comprehensive 5-stage testing process:
- Rotor Dynamic Balance Test – verifies stability at full operational speed.
- Pressure Efficiency Test – ensures air output meets OEM standards.
- Noise and Vibration Analysis – confirms smooth operation under load.
- Temperature and Leakage Inspection – prevents energy loss under continuous duty.
- Final Endurance Trial – full-load test for operational reliability and temperature control.
Every unit ships only after passing 100% of these quality checkpoints.
Why Choose Our Air End?
KINTON provides high-quality OEM replacement air ends for Atlas Copco screw compressors, focusing on precision engineering, long service life, and global availability. Each product combines advanced manufacturing technology, stringent testing, and competitive pricing, making KINTON a trusted supplier for industrial compressor parts distributors and service centers worldwide.
With stable inventory and fast international logistics, we help customers reduce downtime and keep their compressed air systems running at top performance.
OEM Fitment and Compatibility
- OEM Reference Number: 1616735200
- Compatible With: Atlas Copco GA series and equivalent screw compressor models
- Replacement Type: Direct-fit, plug-and-play assembly
- Performance: Matches or exceeds OEM performance specifications
This air end is designed for seamless integration with your existing motor, coupling, and control system — minimizing installation time and ensuring immediate operational readiness.
| Airend/Rotor/Head PN | |||||||
|---|---|---|---|---|---|---|---|
| 1616578982 | 1616578992 | 1616671280 | 1616671290 | 1616740881 | 1616740891 | 1616740980 | 1616740990 |
| 1616714692 | 1616714682 | 1616714683 | 1616714693 | 1616714680 | 1616714690 | 1616725781 | 1616725791 |
| 1616651280 | 1616651283 | 1616725681 | 1616725691 | 1616528850 1616528880 |
1616635681 | 1616635682 | 1616590481 |
| 1616590482 | 1616590483 | 1616734580 | 1616734581 | 1616734591 | 1616734582 | 1616734592 | 1616740881 |
| 1616626081 | 1616738280 | 1616630581 | 1616630582 | 1616692580 | 2236050200 | 2236050100 | 1616710380 1616710390 |
| 1616657583 | 1616657580 | 1616580381 | 1616580382 | 1616646680 | 2989015800 | 1616761280 | 1616761290 |
| 1616646680 | 2989015800 | 1616757580 | 1616757590 | 1616754080 | 1616754090 | 1616585181 | 1616747281 |
If you’re unsure about the model match, contact KINTON for confirmation using your compressor’s serial number or nameplate details.
Maintenance Recommendations
To keep your air end running efficiently:
- Use genuine air/oil filters and high-quality compressor lubricants.
- Check oil levels and replace separator elements at scheduled intervals.
- Keep the cooling system clean to prevent temperature buildup.
- Monitor vibration and pressure regularly to detect early signs of wear.
Consistent maintenance helps sustain maximum air output and energy efficiency throughout its service life.
