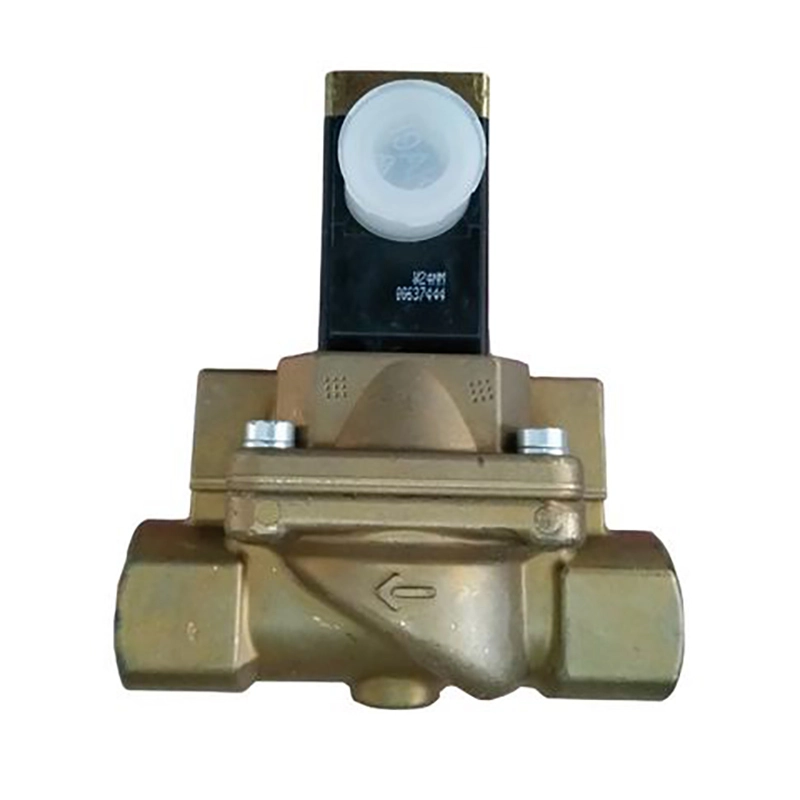

Ingersoll Rand Air Compressors Spare Parts Solenoid Valve
High-performance solenoid valve engineered for Ingersoll Rand screw air compressors. Designed for precise pneumatic control in load/unload cycles, signal switching, and system protection functions. Built with enhanced corrosion resistance, stable magnetic actuation, and long-term durability in demanding compressor environments.
| Application |
Air Compressor |
|---|---|
| Material |
Stainless Steel |
The Ingersoll Rand Solenoid Valve 22130439 is a critical pneumatic control component used in a wide range of IR screw compressor models. This valve governs essential air-control actions such as inlet modulation, unloading signals, venting commands, and pressure routing, ensuring smooth compressor transitions between operating states.
IR systems use a highly coordinated pneumatic logic. This solenoid valve is built to match the precise timing and airflow requirements of IR compressors, especially in applications where stable discharge pressure and quick response to load fluctuations are essential.
Key Features & Technical Advantages
1. Enhanced Corrosion-Resistant Valve Body
Unlike standard brass designs, the housing of this model is treated with anti-corrosion coating suitable for oil-rich, moisture-prone air compressor environments.
- Resists oxidation from warm compressed air
- Prevents internal rusting that may obstruct spool movement
- Ensures a long, stable service life even in humid installations
2. High-Sensitivity Magnetic Actuator
The internal plunger assembly is specifically engineered for IR’s pneumatic configuration:
- High magnetic lift for stable switching
- Consistent response under fluctuating voltage conditions
- Non-stick plunger ensures repeatable actuation cycles
The valve maintains performance even during frequent start/stop operations.
3. Optimized Flow Passages for IR Load/Unload Structure
IR compressors often use modulating inlet valves and multi-stage unloading, requiring fast but controlled airflow switching.
To match this logic, the solenoid valve features:
- Low-turbulence air channels
- Minimized internal pressure drop
- CNC-polished pathways that prevent airflow shock
This design improves overall system efficiency and reduces energy waste during unloading cycles.
4. High-Durability Oil-Resistant Seals
Internal elastomers are selected for IR’s typical operating conditions:
- Compatible with synthetic and mineral compressor lubricants
- Resistant to swelling, cracking, and varnish buildup
- Performs reliably across continuous high-temperature operation
This helps prevent mis-switching caused by seal degradation.
5. Stable Operation Under Vibration & Long Working Hours
IR compressors, especially larger kW segments, generate noticeable vibration.
This solenoid valve includes:
- Reinforced coil mounting
- Anti-vibration plunger guide
- Shock-resistant internal assembly
Ideal for 24/7 industrial plants, workshops, and heavy-duty environments.
Functional Role in Ingersoll Rand Compressors
This solenoid valve may participate in several core IR control functions:
- Load/Unload Signal Switching
Directs pneumatic commands to initiate air intake or unloading mode. - Inlet Modulation Assistance
Works with IR’s modulation control valve to maintain constant pressure. - Blowdown Air Passage Control
Manages pressure release during shutdown to protect the compressor. - Safety Overrides
Quick switching ensures accurate system response to abnormal pressure or overheating signals.
Proper valve function directly influences:
- System stability
- Energy consumption
- Outlet pressure accuracy
- Compressor longevity
Material & Structural Details
| Component | Material | Features |
|---|---|---|
| Valve Body | Treated Aluminum / High-Grade Brass | Corrosion protection, lightweight, long service life |
| Plunger Core | Stainless Steel | Smooth movement, wear resistance |
| Seal Rings | NBR / Viton | Oil, heat, and chemical resistant |
| Coil | High-Temperature Copper Coil | Fast response, low power loss, insulated for compressor environments |
Quality Testing & Performance Verification
Every 22130439 solenoid valve undergoes strict performance testing:
- Pressure leak test at rated pressure
- Coil resistance & insulation check
- Dynamic response time measurement
- Valve stroke travel accuracy test
- Thread & interface dimensional inspection
- High-temperature endurance test (oil mist exposure)
Ensuring fully reliable and compressor-ready performance.
OEM Compatibility
Perfect replacement for:
- Ingersoll Rand OEM Part Number: 22130439
- Fits a broad selection of IR screw compressor models, including fixed-speed and variable-speed series.
- Fully interchangeable with IR original solenoid valves in dimensions, ports, and electrical connection.
Why Choose Our Replacement Valve?
- Built under ISO/TS-compliant manufacturing process
- Long-life coil and oil-resistant internals
- Stable switching performance for demanding IR systems
- Direct OEM-fit structure
- Excellent cost-performance ratio
