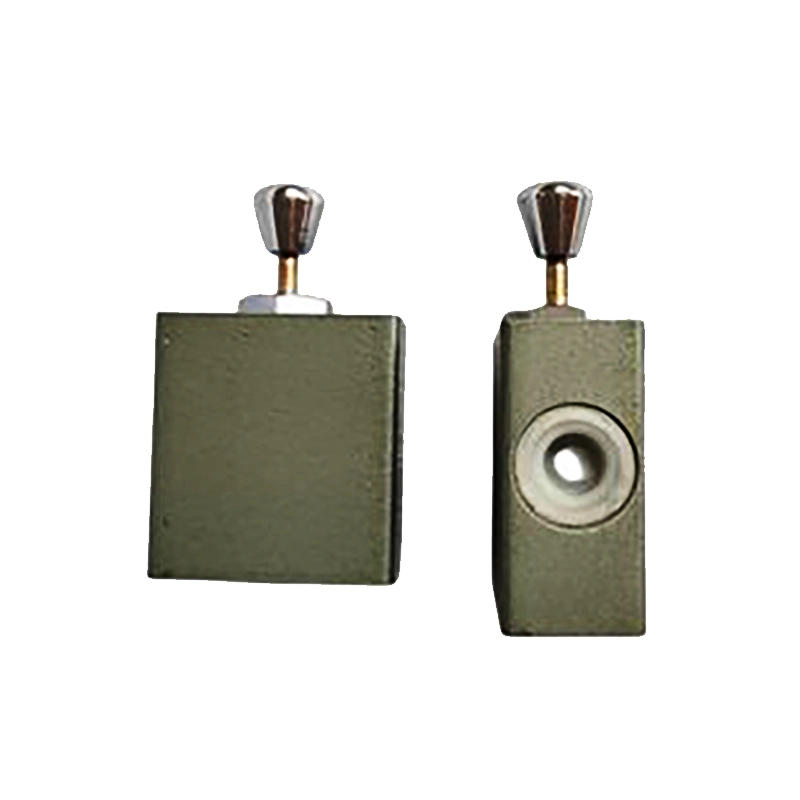

Wholesale Vent Blowdown Valve 35583210 for Ingersoll Rand Air Compressors
The Ingersoll Rand blowdown valve 35583210 delivers fast and stable pressure relief during unload mode, ensuring smooth compressor transition, reduced startup load, and long-term system protection.
| Application |
Air Compressor |
|---|---|
| Material |
Stainless Steel |
The 35583210 blowdown valve is a high-reliability component used in Ingersoll Rand rotary screw air compressor systems. Its primary role is to release residual pressure from the air-end, discharge line, and separator tank during the unload cycle, ensuring that the compressor starts and operates without excessive mechanical load.
Ingersoll Rand compressors rely heavily on precise unload timing—too slow, and the motor experiences unnecessary stress; too fast, and system pressure becomes unstable. This valve is engineered to deliver accurate, repeatable venting performance, even in continuous-duty, high-temperature, or oil-rich environments.
Functional Role in Ingersoll Rand Compressor Systems
In IR screw compressor systems, the unload process is closely linked to the actions of the inlet valve, minimum pressure valve, and control solenoid. The 35583210 blowdown valve connects to the unload control circuit and activates the moment the compressor transitions out of load mode.
During operation, it:
- Opens a calibrated venting path to release internal pressure
- Reduces pressure within the air-end discharge cavity
- Lowers tank and separator internal pressure to a safe restart level
- Ensures the compressor motor never restarts under load, protecting the drive system
- Stabilizes IR’s pressure modulation system for smoother cycling
Unlike standard universal valves, this model is tuned for the characteristic airflow and unloading dynamics specific to Ingersoll Rand machines.
Technical Design Characteristics
- Precision-Calibrated Valve Core
The internal poppet is machined to a fine tolerance, ensuring instant opening and consistent venting speed even after thousands of cycles. This is especially important for IR compressors that run in frequent start-stop conditions. - High-Flow Venting Port Geometry
IR compressors often operate at higher internal working pressures. The vent channel of the 35583210 valve is shaped to eliminate turbulence, allowing controlled but efficient depressurization without sudden pressure drop shock. - Oil-Resistant Seal Configuration
The sealing ring and internal gaskets are formulated to withstand lubrication oil mist, separator tank vapors, and elevated discharge temperatures. - Robust Housing for Harsh Industrial Usage
The valve body material resists oxidation, corrosion, and thermal fatigue, ensuring stable performance in 24/7 manufacturing and workshop environments. - Consistent Spring Response
The return spring is engineered to maintain its elasticity over long duty cycles, ensuring the valve can close firmly after each unload event without leakage.
Performance Benefits
The 35583210 blowdown valve provides multiple operational advantages for Ingersoll Rand screw compressors:
- Fast and stable pressure venting, ensuring smooth unload transitions
- Lower stress on electric motors, extending the lifespan of starters and drive components
- Reduced internal load on the air-end, protecting rotors, bearings, and seals
- Improved oil-air separation performance by maintaining correct tank pressure during unload
- Quiet and controlled exhaust behavior, minimizing vibration and system pulsation
- Enhanced durability during long operating shifts or in high-duty factories
These benefits make it suitable for facilities requiring uninterrupted compressed air supply.
Installation & Maintenance Notes
To ensure optimal performance:
- Install strictly at the IR-designated unloading port
- Ensure the vent path is not blocked by oil condensation or contaminants
- Regularly check for leakage during unload operation
- Replace the valve if unload timing becomes inconsistent or if residual pressure remains within the system
- Periodically clean or check control lines that connect to the inlet valve or solenoid valve
Correct installation directly affects unload response quality and compressor overall reliability.
Quality Assurance
Every valve undergoes:
- Pressure and sealing verification
- Response time measurement
- High-temperature oil mist simulation
- Endurance cycling test
- Dimensional precision inspection
Each product is packed to prevent contamination during transportation.
Related Parts Supply
We also supply:
- Check valves
- Minimum pressure valves
- Solenoid valves
- Inlet/unloader valves
- Maintenance kits
- Pressure sensors
- Drain valves
OEM & ODM support is available.
