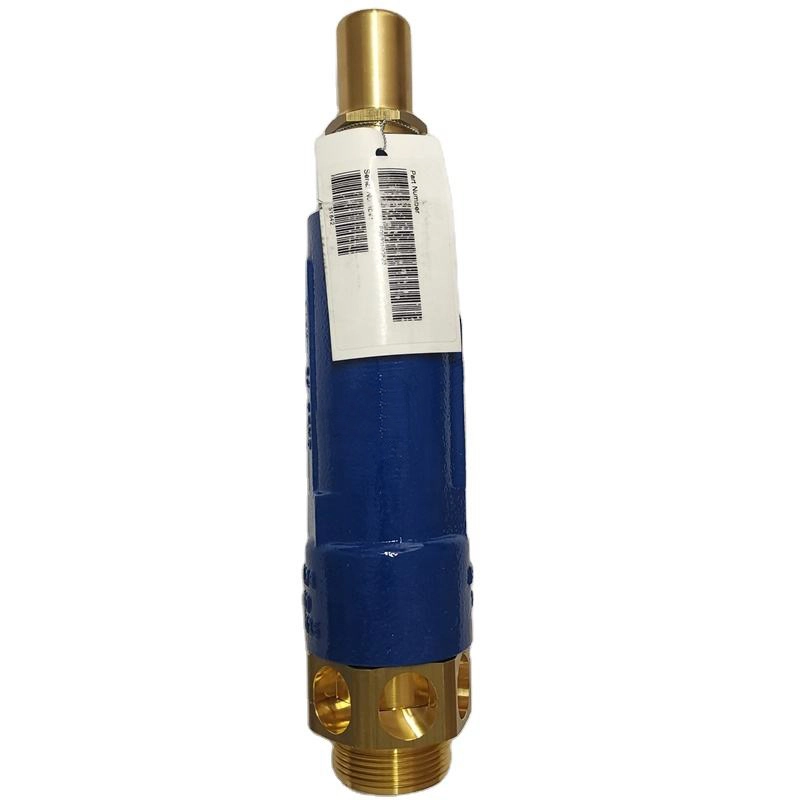

Pressure Relief Valve For Ingersoll Rand Screw Air Compressor
High-precision relief valve designed for Ingersoll Rand screw air compressors to ensure safe pressure control and stable system protection. Manufactured with hardened stainless steel components, calibrated spring assemblies, and precision-machined valve seats, offering reliable over-pressure protection in continuous-duty industrial applications.
| Application |
Air Compressor |
|---|---|
| Material |
Brass / Bronze ,Stainless Steel |
This relief valve is engineered as a direct replacement for Ingersoll Rand screw air compressor safety and pressure-control systems. It plays a critical role in protecting the airend, oil circuit, separator tank, and downstream piping by releasing excess pressure when system limits are exceeded. Designed for demanding industrial settings where compressors operate for long hours, the valve ensures stable, repeatable pressure release without leakage or delayed response.
Each valve is manufactured with close-tolerance machining and strict calibration to match the factory pressure settings required by IR compressor models. The result is a protection component that performs reliably under fluctuating temperatures, oil contamination, vibration, and load cycles.
Function & Working Principle
In Ingersoll Rand screw compressors, the relief valve acts as the final safety measure of the pressure system. When system pressure increases beyond the calibrated threshold, the valve automatically lifts to release excess air and prevent:
- Over-compression inside the airend
- Excessive internal tank pressure
- System component fatigue or rupture
- Damage to oil separators and bearings
- Sudden shutdowns caused by unsafe pressure spikes
Under normal operation, the valve remains tightly sealed. Only when the set pressure is reached does the spring force allow the valve disc to lift momentarily, venting pressure until the system returns to a safe level. The precise spring characteristics and valve seat geometry ensure that the opening point is accurate and that reseating occurs without unnecessary pressure loss.
Design Characteristics & Material Advantages
To maintain stable protection in harsh operating environments, the relief valve incorporates a combination of corrosion-resistant metal alloys and heat-treated stainless steel. Structural details include:
- Valve Body
Made from high-grade steel or anodized alloy, capable of withstanding high pressure, oil vapor, and temperature fluctuations. The exterior surface receives anti-corrosion treatment to extend service life even in high-humidity compressor rooms. - Precision Spring Assembly
The internal spring undergoes heat treatment and stress-relief to ensure consistent elasticity and accurate opening pressure. This prevents early fatigue and avoids variations in pressure set-points during long-term operation. - Hardened Valve Disc & Seat
The contact surfaces are finely ground to achieve excellent sealing performance. The high wear resistance reduces micro-leakage and prevents the valve from sticking after long idle periods or heavy-duty operation. - Internal Flow Channel Structure
The optimized venting passage ensures rapid discharge of excessive pressure while minimizing turbulence and noise.
These material and structural characteristics allow the valve to respond quickly and consistently even after thousands of pressure cycles.
Performance Features
This IR-compatible relief valve delivers high-level safety performance across demanding working conditions:
- Highly accurate pressure relief point, ensuring system protection that meets or exceeds OEM standards
- Fast valve response under sudden pressure rises
- Stable reseating behavior, preventing unnecessary continuous leakage
- Reliable performance in high-temperature compressor environments
- Resistance to oil contamination, ensuring long lifespan in oil-injected screw compressor systems
- Minimal drift in pressure calibration even with long-term use
Each valve undergoes calibration using industrial-grade test benches that replicate real compressor working conditions.
Compatibility & Applications
This relief valve is compatible with multiple IR screw compressor models using the following OEM references:
- 39588116
- 22137699
- 39167119
- 32174799
It is widely used in:
- Fixed industrial screw air compressors
- Oil-injected screw compressor units
- High-load 24/7 continuous-duty compressor installations
- General manufacturing plants, chemicals, mining, automotive and energy industries
Its universal mounting and pressure characteristics ensure drop-in replacement without modification.
Quality Assurance & Testing
To guarantee long-term stability, each valve is tested for:
- Opening pressure calibration accuracy
- Repeated pressure cycling endurance
- Leakage performance at different pressure levels
- High-temperature stability
- Valve seat wear resistance
- Spring fatigue resistance
Testing data is compared to OEM performance benchmarks to ensure equivalent or superior reliability.
Installation & Maintenance Guidelines
Proper installation ensures the relief valve performs as intended:
- Ensure the mounting port is clean and free of debris before installation
- Avoid overtightening to prevent thread deformation
- Confirm the valve’s pressure specification matches the compressor model
- Replace the valve if any signs of seat wear, corrosion, or delayed response appear
- Never attempt to manually adjust the factory-set calibration
- Inspect during each service cycle, especially in high-temperature or high-humidity environments
A properly maintained relief valve significantly reduces the risk of compressor shutdowns and increases overall system safety.
