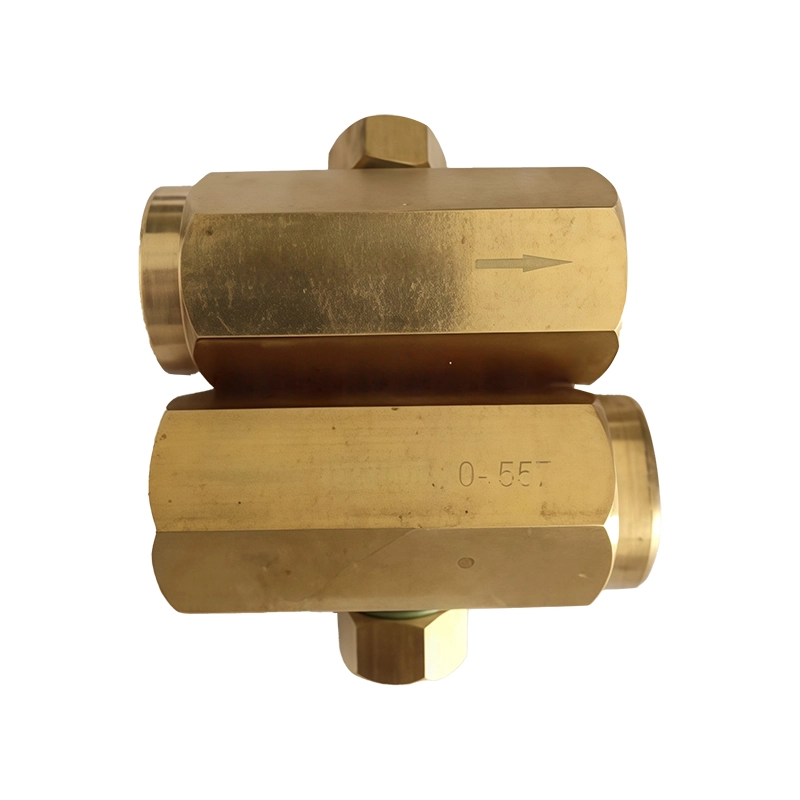

Wholesale One-Way Check Valve fit Sullair Air Compressor
The Sullair 02250110-557 check valve is engineered to maintain controlled, one-direction airflow in rotary screw air compressors. Its robust construction, temperature-resistant sealing, and precise internal geometry ensure long-term reliability under continuous industrial operation.
| Application |
Air Compressor |
|---|---|
| Material |
Stainless Steel |
The 02250110-557 check valve is a key component within Sullair compressed air systems, functioning as a critical safeguard between the air end, oil circuit, and downstream piping. In a screw compressor, backflow prevention is essential—not only to protect the air end from reverse pressure but also to stabilize system behavior during startup, load switching, and shutdown phases.
This valve is designed with Sullair’s operating characteristics in mind, supporting the brand’s emphasis on durability, low maintenance needs, and smooth airflow management. Whether used in heavy-duty industrial plants or continuous 24/7 operation environments, it delivers the consistency necessary for stable compressor performance.
Functional Role in Sullair Screw Compressor Systems
Unlike many general-purpose check valves, the 02250110-557 is optimized for the oil-injected rotary screw environment, where the mixture of hot compressed air and lubricating oil demands superior sealing and material endurance. The valve opens precisely when forward air pressure increases, allowing unrestricted flow from the compression chamber.
When the compressor cycles off or downstream pressure rises, the valve closes instantly, preventing back-pressure surges from traveling toward the compressor’s air end. This also reduces the mechanical load during restart, supporting smoother motor acceleration and protecting internal bearings, rotors, and inlet components.
Engineering & Internal Structure
The valve employs a guided disc/poppet mechanism designed for accuracy and minimal friction. The movement path is tightly controlled to ensure stable alignment even during rapid pressure fluctuations. This structure reduces the risk of valve chatter—a common issue when the disc vibrates due to unstable pressure waves.
The seat geometry is machined to micron-level flatness to create a uniform sealing surface. This minimizes micro-leakage and prevents small amounts of high-pressure air from migrating backward, which can cause temperature spikes and premature wear inside the air end.
Materials & Heat Resistance
To suit the thermal loads commonly found in Sullair compressors, the valve body is manufactured using heat-treated alloy steel or hard-anodized aluminum, depending on the production batch and compressor model requirements. The internal poppet is often surface-hardened to withstand repetitive impact and continuous cycling.
Sealing elements use high-temperature elastomers, formulated to retain elasticity despite constant exposure to hot compressed air, entrained oil mist, and rapid variations in pressure. These seals provide consistent performance even under extended operation at elevated temperatures.
Performance Advantages
The 02250110-557 is engineered for:
- Fast response closing, preventing reverse flow during shutdown
- Low pressure drop, contributing to compressor energy efficiency
- Stable airflow, supporting smoother operation during load/unload cycles
- Improved protector performance, reducing stress on check valve seats and compressor air end
- Long service life under oil-rich, high-frequency cycling environments
Its internal flow path is optimized to reduce turbulence, which improves downstream pressure stability and reduces the overall energy consumption of the system.
Compatibility with Sullair Compressor Models
This check valve model is widely used across multiple Sullair rotary screw compressor series. It fits directly into OEM configurations and matches the required thread specifications and pressure ratings.
Because the valve is manufactured to exact dimensional tolerances and sealing standards, installation requires no modification and ensures full compatibility with Sullair’s original system design.
Manufacturing Quality & Precision Testing
Each valve undergoes a series of production-stage inspections, including:
- Dimensional accuracy checks for body, seat, and poppet
- Surface roughness testing on sealing contact surfaces
- Spring force calibration to ensure consistent opening pressure
- Dynamic leak simulation under multiple pressure levels
- High-temperature endurance tests to verify long-term stability
These steps ensure that every valve performs reliably in demanding industrial environments with minimal maintenance requirements.
Installation & Maintenance Guidelines
Before installation, the pipeline should be cleaned thoroughly to prevent debris from scratching the sealing surface or obstructing the poppet movement. Proper orientation following airflow direction marks is essential.
During routine maintenance, operators should examine the valve for signs of slow closing, restricted movement, or unusual noise—symptoms often associated with contamination or wear. Cleaning deposits from the internal pathway and verifying spring elasticity will significantly extend the valve’s service life.
