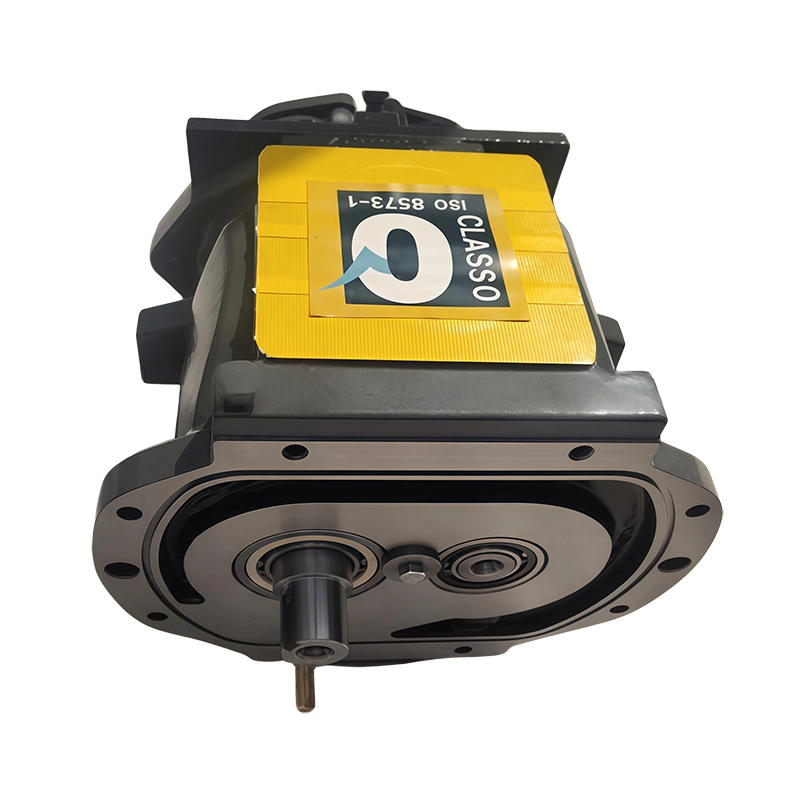

Screw Air Compressor Spare Parts Air End 1616757580 fit Atlas Copco

Premium replacement air end assembly compatible with Atlas Copco screw air compressors, part numbers 1616757580 and 1616757590. Designed for outstanding efficiency, low noise, and long-lasting reliability, this unit is manufactured to precise OEM standards, ensuring excellent performance in continuous industrial operation.

Application

Screw Air Compressor

Material

Stainless Steel

The air end is the core component of a screw air compressor, responsible for compressing air and determining overall system efficiency. KINTON provides a premium-quality replacement air end for Atlas Copco models, designed to match OEM standards in performance, reliability, and durability. Each unit undergoes strict machining and dynamic balance testing to ensure smooth operation with low vibration and noise.

Model Compatibility: Tailored for a perfect fit with Atlas Copco compressors that require models 1616757580 and 1616757590. Prior to purchase, please verify your compressor’s model number to ensure a hassle-free replacement.
Primary Function: Converts mechanical energy into compressed air with minimal energy loss, providing consistent pressure and airflow for industrial, manufacturing, and commercial applications.
Quality Commitment: Each unit undergoes strict testing to meet or surpass OEM specifications, ensuring performance that matches the reliability of Atlas Copco’s original parts.

Key Features

Precision-Crafted Screw Rotors

The core of the air end lies in its screw rotors. We use high-grade alloy steel (matched to Atlas Copco’s original material standards) and precision CNC machining to create rotors with:

Tight tolerances to minimize air leakage during compression.
Optimized rotor profiles that reduce friction, lower operating temperatures, and improve energy efficiency by up to 15% compared to worn or low-quality replacements.
Exceptional resistance to wear and corrosion, even in harsh industrial settings.

Robust Bearing Assembly

To ensure long-term reliability, we equip the air end with premium roller bearings. These bearings:

Support high rotational speeds (up to 3,200 RPM) without overheating, ensuring stable operation.
Reduce vibration, minimizing noise and extending the lifespan of the air end and connected compressor components.
Come pre-lubricated with high-temperature synthetic grease for immediate use after installation.

Leak-Proof Sealed Housing

The air end housing is cast from heat-treated gray iron for superior strength and efficient heat dissipation. It features:

Double-lip oil seals and O-ring gaskets (made from high-quality nitrile rubber) to prevent oil and air leakage, maintaining optimal performance.
A smooth internal surface that reduces air turbulence, improving compression efficiency.
Precisely machined mounting points that align perfectly with Atlas Copco compressors, eliminating the need for modifications during installation.

OEM-Grade Materials and Rigorous Testing

Every air end is built to meet strict quality requirements:

Materials undergo comprehensive testing for hardness, tensile strength, and corrosion resistance to ensure durability.
Each unit undergoes a 3-hour pressure test to guarantee leak-proof performance. checked using advanced laser measurement tools to ensure smooth and efficient operation.

Technical Specifications

To help you confirm compatibility and performance, we’ve detailed the key technical specifications for both models (1616757580 and 1616757590):

Specification	Model 1616757580	Model 1616757590
Compression Type	Twin-Screw (Oil-Injected)	Twin-Screw (Oil-Injected)
Maximum Operating Pressure	12 bar (174 PSI)	15 bar (218 PSI)
Rated Airflow	3.2 m³/min (113 CFM)	4.0 m³/min (141 CFM)
Rotor Diameter	85 mm	90 mm
Rotor Length	230 mm	250 mm
Number of Rotor Lobes	Male: 5 / Female: 6	Male: 5 / Female: 6
Shaft Diameter	32 mm	38 mm
Weight	30 kg (66.1 lbs)	35 kg (77.2 lbs)
Oil Capacity	1.4 L	1.8 L
Operating Temperature Range	-15°C to 105°C (5°F to 221°F)	-15°C to 105°C (5°F to 221°F)

Note: For detailed compatibility with specific Atlas Copco compressor models (e.g., GA45, GA55), please contact our technical support team with your compressor’s serial number for accurate verification.

Why Choose Our Air End?

Perfect Compatibility Guaranteed
Our air ends are engineered to fit Atlas Copco compressors requiring models 1616757580 and 1616757590. We cross-check part numbers with Atlas Copco’s official catalog to ensure a 1:1 replacement, avoiding installation issues.
Cost-Effective Without Sacrificing Quality
OEM air ends can be extremely costly. Our replacement parts offer the same performance and durability as Atlas Copco’s original units but at a 35-45% lower price—helping you cut maintenance costs without compromising on quality.
Quick Installation and Minimal Downtime
The air end comes with all necessary mounting hardware (bolts, gaskets, and O-rings) and a detailed, step-by-step installation guide. Most technicians can complete the replacement in 1.5-2.5 hours, minimizing downtime for your operations and keeping productivity high.

OEM Compatibility

This air end is fully interchangeable with Atlas Copco original parts and is a direct replacement requiring no modifications. OEM Part Numbers: 1616757580, 1616757590 Suitable for: Atlas Copco GA series screw compressors Replacement Type: Direct fit – install and operate immediately

Airend/Rotor/Head PN
1616578982	1616578992	1616671280	1616671290	1616740881	1616740891	1616740980	1616740990
1616714692	1616714682	1616714683	1616714693	1616714680	1616714690	1616725781	1616725791
1616651280	1616651283	1616725681	1616725691	1616528850 1616528880	1616635681	1616635682	1616590481
1616590482	1616590483	1616734580	1616734581	1616734591	1616734582	1616734592	1616740881
1616626081	1616738280	1616630581	1616630582	1616692580	2236050200	2236050100	1616710380 1616710390
1616657583	1616657580	1616580381	1616580382	1616646680	2989015800	1616761280	1616761290
1616646680	2989015800	1616757580	1616757590	1616754080	1616754090	1616585181	1616747281

For specific model confirmation, please contact our technical support with your compressor serial number.

Applications: Where This Air End Excels

This air end is ideal for restoring performance in Atlas Copco compressors used in a wide range of industries:

Manufacturing: Powering pneumatic tools (such as drills, grinders, and impact wrenches), conveyor systems, and assembly lines.
Automotive: Supporting paint booths, tire inflation, engine testing, and robotic assembly.
Construction: Equipping portable compressors for jackhammers, nail guns, concrete spraying, and sandblasting.
Food & Beverage: Providing compressed air for packaging, labeling, product transfer, and cleaning (meets FDA standards for oil-lubricated compressors).
Mining: Powering ventilation systems, pneumatic machinery, and material handling equipment in underground and surface mines.
Pharmaceuticals: Supporting cleanroom operations, including product packaging and equipment sterilization.
