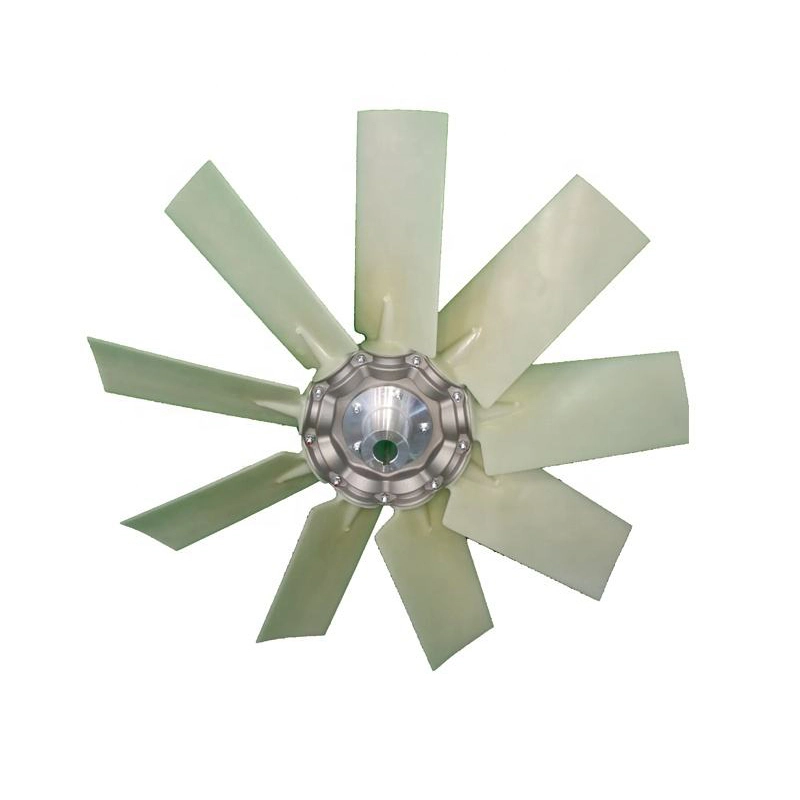

Cooling Fan for Ingersoll Rand Air Compressors
High-efficiency cooling fan designed for Ingersoll Rand stationary and portable air compressors. Engineered to deliver stable airflow, optimized heat dissipation, and long-term durability under continuous operating conditions.
| Application |
Screw Air Compressor |
|---|---|
| Material |
Aluminum ,Metal ,Plastic ,Stainless Steel |
Cooling fans play a crucial role in maintaining the thermal stability of Ingersoll Rand screw air compressors. They operate continuously alongside the motor and cooler components, ensuring efficient removal of heat from the oil cooler, aftercooler, and motor housing. These compatible fan models—22636930, 39911649, and 54427646—are specifically designed to meet the specific airflow requirements, speeds, and size specifications of the Ingersoll Rand compressor platform. Using compatible and well-designed fans is essential for maintaining stable exhaust temperatures and extending compressor life.
Design Features & Material Quality
The fan blades are made of high-strength engineering plastics or fiber-reinforced composite materials, offering excellent resistance to temperature differences, impact, and sustained mechanical stress. This material selection prevents blade deformation and maintains aerodynamic performance even after prolonged exposure to high-temperature air and oil mist. The hub is precision-machined to ensure a secure connection to the motor shaft or fan clutch system, thereby achieving stable, eccentric rotation.
Cooling Performance
These fans in Ingersoll Rand air compressors provide strong and consistent airflow, ensuring the cooling system maintains its design efficiency. The fans stabilize the compressor oil temperature, protecting the main unit from thermal stress and preventing overheating during sustained high-load operation. Efficient cooling also reduces carbon buildup in the lubricating oil, slows oxidation processes within the compressor, and helps maintain the optimal exhaust temperature required by downstream equipment.
The fans' stable airflow performance is particularly beneficial for air compressors installed in harsh environments, such as high-temperature workshops, dusty mines, and mobile industrial applications. Even when airflow demand fluctuates due to changes in compressor speed or load cycles, the fans maintain sufficient cooling capacity.
Precision Balancing & Vibration Control
Each fan is dynamically balanced before delivery to ensure smooth operation at high RPM. This balancing significantly reduces vibration, which is crucial for maintaining stability in sensitive components such as:
- Motor bearings
- Fan shaft or coupling
- Cooler mounting frames
- Surrounding brackets and shrouds
Stable vibration characteristics directly reduce maintenance frequency and extend the lifespan of both the fan and neighboring mechanical parts.
Compatibility & Applications
These fan models replace the original Ingersoll Rand parts:
- 22636930
- 39911649
- 54427646
They are widely used in:
- Stationary screw compressors
- Portable rotary screw compressors
- High-capacity industrial air systems
- IR compressor models requiring matched airflow and diameter specifications
Their dimensional accuracy and mounting compatibility ensure quick and trouble-free installation without system modifications.
Manufacturing Quality & Testing
To guarantee stable performance, each fan undergoes strict factory testing:
- Dimensional inspection
- Material strength validation
- Rotational balance testing
- High-temperature air exposure simulation
- Noise and vibration analysis
- Hub strength and fitment verification
These tests confirm that the fan meets industrial cooling and mechanical performance standards.
Installation & Maintenance Guidance
When installing the cooling fan, ensure the mounting surface and fasteners are clean and free from oil contamination. Proper torque application is important to prevent hub slippage or stress cracks. The fan should rotate freely without contacting shrouds or cooler fins. During routine maintenance, operators should check for cracks, blade deformation, buildup of dust or oil residue, and any abnormal vibration or noise. Timely replacement is recommended if signs of fatigue, imbalance, or gradual airflow reduction appear.
