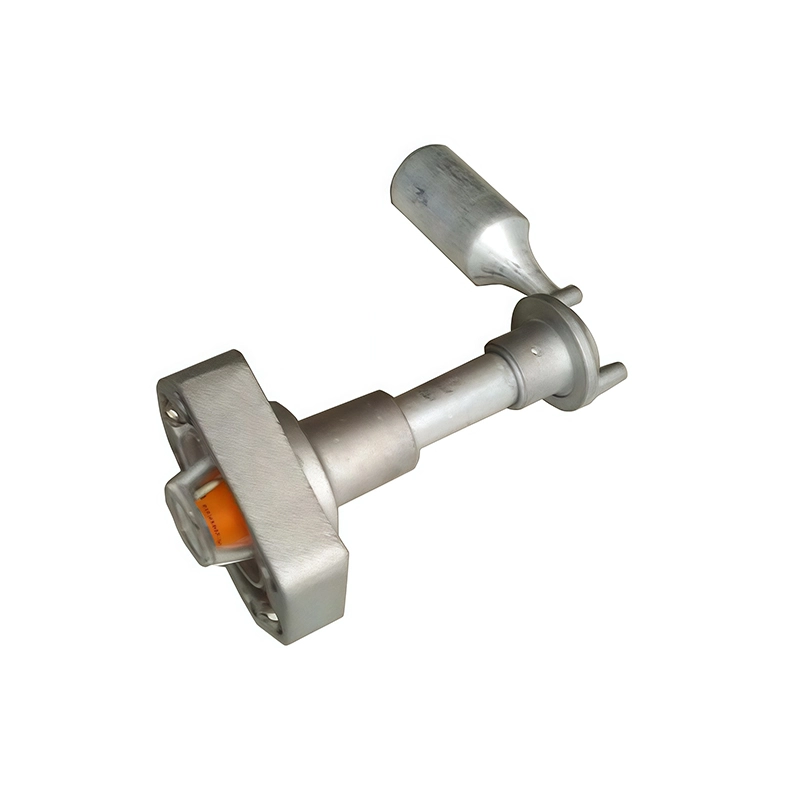

Screw Air Compressor Parts Sight Glass Oil Level Gauge 1616239100 Replacement
Durable oil level gauge 1616239100 for screw-type air compressors, featuring a reinforced housing, upgraded visibility window, stable sealing performance, and enhanced resistance to thermal cycling and vibration.
| Application |
Screw Air Compressor |
|---|---|
| Material |
Plastic ,Stainless Steel |
The 1616239100 Oil Level Gauge is a precision inspection component designed for monitoring lubricant levels inside screw-type air compressor oil reservoirs. During long operation periods, the stability of the sight window, its clarity, and its sealing integrity become critical to the compressor’s reliability. This model is engineered with upgraded materials and a thicker viewing structure to deliver dependable oil-level readability in both high-temperature and vibration-intensive environments.
Compared with standard sight glasses, this model focuses on optical stability and structural reinforcement. Its housing and lens maintain their clarity and mechanical strength even after extended exposure to heat, pressure fluctuations, and synthetic compressor oils.
Key Features & Performance Advantages
Enhanced Visual Clarity
The viewing lens is made from a high-transparency polyamide or tempered glass material that resists micro-scratches and clouding. Even after long-term contact with synthetic lubricants, the window remains clear, allowing technicians to easily observe oil condition, color changes, and the MIN–MAX levels. The interior surface is smoothed and polished to ensure minimal refraction, giving operators a true representation of the oil level without visual distortion.
Upgraded Thermal and Chemical Resistance
This gauge performs reliably in compressor systems that operate under sustained thermal loads. Its lens and housing resist deformation or discoloration at temperatures common in screw compressor lubrication chambers. Continuous exposure to PAO, diester, and other high-performance compressor oils will not weaken the material or cause seal hardening. The gauge maintains structural stability even during rapid temperature shifts at startup or shutdown.
Reinforced Housing and Structural Strength
The body of the 1616239100 gauge is designed with thicker walls and improved rigidity to prevent cracking or stress fractures. This reinforcement is especially beneficial in installations where the compressor experiences frequent vibration or pressure pulses from load cycling. The structure holds firm against reservoir pressure variations, ensuring consistent alignment and preventing micro-leakage around the seating area.
Reliable Sealing Performance
A premium-grade sealing ring ensures that the sight glass maintains a tight seal against the oil tank surface. The material is selected for its resistance to swelling, heat aging, and compression-set, ensuring long-term flexibility and contact integrity. Even after long periods of exposure to hot oil and metal thermal expansion, the seal remains stable, preventing seepage or slow leaks.
Applications
The oil level gauge 1616239100 is suitable for a wide range of industrial screw air compressor systems, especially those operating in:
- Manufacturing and machining plants with long working hours
- High-temperature compressor rooms
- Installations with continuous start-stop cycles
- Environments where vibration and thermal cycling are common
- Facilities using synthetic high-performance compressor oils
Its design ensures stable readings and long service life regardless of operational intensity.
How It Works
Once installed on the compressor’s oil reservoir, the gauge offers a direct visual reference of the oil level. As the rotor system runs, oil circulates through the chamber, and changes in temperature or load cause the oil level to fluctuate. The gauge’s clear viewing window makes it easy to detect insufficient lubrication, early contamination, foaming, or overfilling. All of these conditions directly affect rotor cooling, bearing protection, and sealing performance—making the sight glass a critical safety component for any screw compressor.
Manufacturing & Quality Control
The production process emphasizes structural consistency and optical precision. The viewing lens is polished to enhance clarity and avoid refractive distortion. The housing is machined to tight tolerances, ensuring perfect thread engagement and uniform gasket compression. Each unit is tested for heat resistance, oil compatibility, and sealing integrity using pressure and temperature cycling simulations that replicate real compressor conditions.
Installation & Maintenance
Installation requires only basic steps: ensure that the mounting surface is clean, confirm that the gasket is properly seated, and tighten by hand before applying final torque. Over-tightening should be avoided to preserve the integrity of the threads and viewing lens.
For maintenance, operators should periodically wipe the outer surface to remove dust or oil vapor residues. If clarity is reduced or if hairline cracks appear after years of exposure, replacement is recommended. Keeping the gauge clean ensures accurate visual readings and prevents misjudgment during lubrication checks.
Why Choose the 1616239100 Oil Level Gauge?
This model is engineered for compressors that operate continuously and require stable, long-lasting visual monitoring. Its reinforced structure, high optical clarity, and reliability under thermal cycling make it a superior replacement for aging or damaged gauges. For operators who rely on consistent lubrication control to maintain compressor efficiency, this oil level gauge offers long-term dependability and clear performance advantages.
