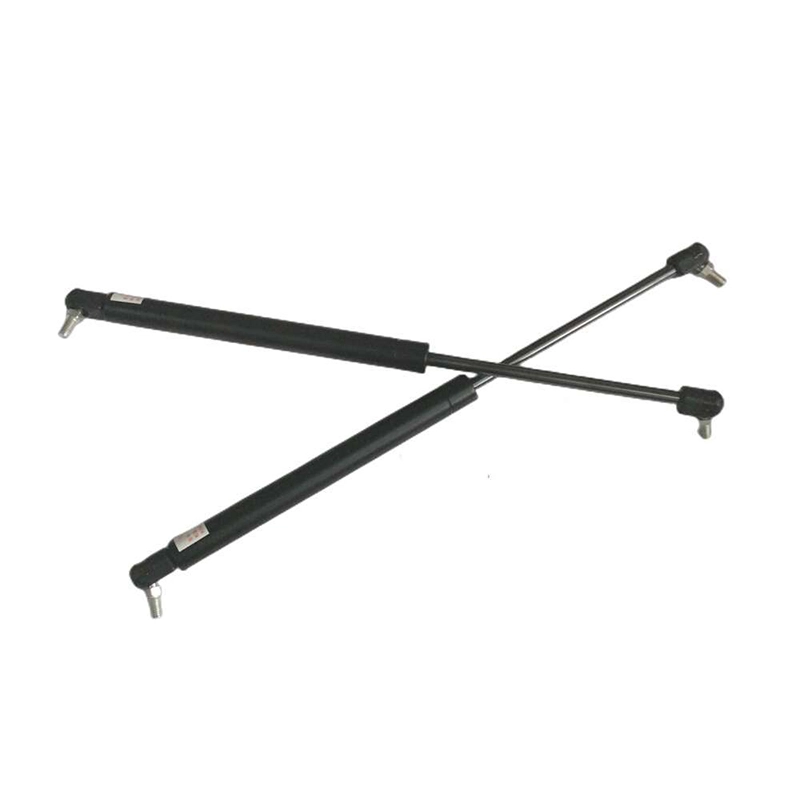

Ingersoll Rand Screw Air Compressor Parts Gas Spring
High-quality gas spring assembly designed for Ingersoll Rand air compressors. Provides reliable support, smooth motion, and safe positioning for maintenance covers and access panels. Built for long service life and consistent damping performance under demanding industrial conditions.
| Application |
Screw Air Compressor |
|---|---|
| Material |
Metal ,Stainless Steel |
The Ingersoll Rand Gas Spring is a precision-engineered support component used in air compressor assemblies to assist with the smooth lifting, positioning, and controlled closing of access panels, service doors, or protective covers.
By using compressed gas (typically nitrogen) sealed inside a high-strength cylinder, the gas spring provides stable, linear force output that makes opening or closing heavy panels effortless. It also prevents sudden movement or impact, reducing the risk of damage to machine enclosures or injury to maintenance personnel.
This gas spring is built according to Ingersoll Rand OEM specifications, ensuring full compatibility, reliable performance, and long-term operational safety.
Design and Working Principle
A gas spring operates on a simple yet precise principle: nitrogen gas sealed within the cylinder exerts constant pressure on a piston rod. As the rod extends or retracts, this pressure is converted into a controlled lifting or damping force.
The 54749114 / 22192728 / 39592951 series adopts a single-tube sealed structure, which effectively isolates the gas and lubricating oil. This design provides stable performance even under high-frequency use or temperature fluctuations, commonly encountered in compressor enclosures and industrial environments.
The internal dynamic sealing system prevents gas leakage, while the oil damping zone ensures soft, slow closure at the end of stroke—protecting both equipment and operators from impact.
Material and Build Quality
Each Ingersoll Rand gas spring is manufactured using high-strength carbon steel or alloy steel for the cylinder, combined with a chrome-plated piston rod to ensure corrosion resistance and smooth operation.
Key construction highlights include:
- Cylinder Material: Seamless precision steel tube, internally honed for reduced friction.
- Rod Surface: Multi-layer hard chrome plating for wear and corrosion protection.
- Seals: High-performance NBR or PU seals resistant to oil, heat, and oxidation.
- End Fittings: Zinc-plated or stainless-steel joints ensuring firm connection and easy installation.
Every component is treated with anti-rust and anti-corrosion coatings, making the gas spring suitable for humid or high-temperature compressor rooms.
Performance Advantages
This Ingersoll Rand gas spring offers multiple performance advantages that enhance both safety and usability:
- Smooth, Controlled Motion: Precision damping eliminates jerky movement and slamming.
- Consistent Pressure Output: Gas pressure remains stable across thousands of cycles.
- High Fatigue Resistance: Designed for continuous operation in industrial environments.
- Corrosion Protection: Advanced coatings and plating ensure long-term resistance to oil mist and moisture.
- Maintenance-Free Operation: Fully sealed design eliminates the need for periodic lubrication or gas refilling.
Manufacturing and Quality Control
Each gas spring is produced under a strict certified process, which includes:
- Gas Charging and Leak Testing – ensuring uniform internal pressure and zero leakage.
- Dynamic Load and Stroke Testing – confirming stable performance under repeated use.
- Surface Treatment Inspection – verifying plating adhesion and corrosion resistance.
- Dimensional Accuracy Verification – maintaining consistent fitment with Ingersoll Rand panels and mounts.
Before shipment, all products undergo 100% functional testing to confirm smooth extension and proper damping characteristics.
Compatibility and Application
This gas spring model is widely used in Ingersoll Rand rotary screw and portable air compressors, providing reliable support for:
- Access and service panels
- Protective enclosures
- Control cabinet doors
- Maintenance hoods
Common compatible units include various Ingersoll Rand SSR, UP, and R Series compressors, among others. It is a direct-fit OEM replacement, requiring no modification to the existing mounting brackets or connection points.
Installation and Maintenance
Installation is straightforward: simply align the end fittings to the original ball joints or brackets, ensuring that the cylinder body faces upward when mounted. This position allows the internal oil damping system to function properly.
Maintenance Tips:
- Do not attempt to open or recharge the gas spring.
- Avoid scratching or bending the piston rod.
- Keep mounting points clean and lightly lubricated.
- Replace both gas springs on dual installations to maintain balanced force.
- Store in a dry environment and avoid prolonged exposure to extreme heat.
Performance and Durability Testing
Each gas spring unit undergoes multiple full-load cycle tests with no pressure loss. The gas spring maintains stable extension speed and damping characteristics throughout its service life.
Thermal durability testing confirms that the gas spring performs stably within a temperature range of -20°C to +80°C, ensuring its reliability in indoor installations and outdoor compressor units.
Conclusion
The Ingersoll Rand Gas Spring (Part No. 54749114 / 22192728 / 39592951) is an essential component that ensures safe, efficient, and user-friendly operation of compressor enclosures and maintenance panels. Manufactured with precision materials and advanced sealing technology, it delivers consistent lifting support, smooth motion, and exceptional durability.
If you’re seeking a high-quality replacement gas spring for your Ingersoll Rand air compressor, this model provides the perfect balance of OEM compatibility, reliability, and long service life.
