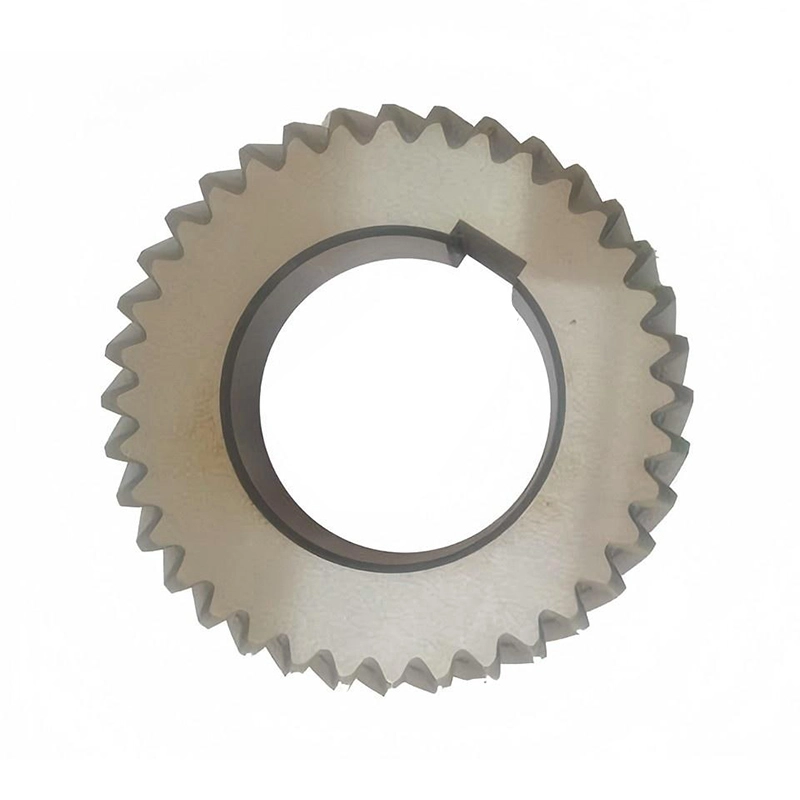

Atlas Copco Screw Air Compressors Spare Parts Gear Wheel 1616539800 1616539900
These Atlas Copco gear wheels deliver precise rotor timing and smooth torque transfer for screw air compressors. Manufactured using high-strength alloy steel, advanced CNC gear cutting, and controlled heat treatment, they ensure exceptional durability, reduced transmission noise, and long operating life even under continuous heavy load.
| Application |
Air Compressor |
|---|---|
| Material |
Stainless Steel |
The Gear Wheel 1616539800 / 1616539900 / 1092023052 is a core mechanical component within the drive and timing system of Atlas Copco screw compressors. Its primary function is to synchronize the male and female rotors, ensuring stable compression efficiency and preventing rotor contact under high operating speeds.
Unlike general industrial gears, screw compressor gears must maintain micron-level precision over long service periods. This series adopts optimized tooth geometry, hardened wear surfaces, and strict concentricity control to guarantee smooth engagement with minimal backlash. The result is a more reliable compressor with lower vibration and higher energy efficiency.
Key Features & Technical Advantages
1. Precision Gear Tooth Profile for Stable Rotor Synchronization
These gear wheels use a finely calculated involute profile to maintain precise rotor phasing at high rotational speeds. The tooth profile is optimized through digital modeling to ensure even load distribution, reducing the risk of micro-pitting, tooth fatigue, or timing drift. This precision directly affects airend efficiency and ensures that the rotors never make physical contact.
2. High-Strength Alloy Steel Construction
Manufactured from premium alloy steel with enhanced toughness, the gear wheels maintain structural integrity under heavy torque impact. The material provides strong resistance to bending stresses and maintains stable performance even in compressors running continuously in harsh industrial conditions.
3. Advanced Heat Treatment for Maximum Surface Hardness
Each gear undergoes controlled carburizing or nitriding to reach a hardened tooth surface while maintaining a tough core structure. This combination significantly improves:
- Wear resistance
- Fatigue life
- Impact load tolerance
- Stability under lubricated high-temperature environments
The uniform hardness layer reduces long-term deformation, ensuring sustained accuracy during the compressor’s full operating lifecycle.
4. CNC Machined for Micron-Level Tolerance
The gear wheels are produced using high-precision CNC gear hobbing and grinding machines, followed by strict concentricity and noise-grade detection.
This ensures:
- Minimal transmission noise
- Low vibration
- Consistent rotational balance
- Perfect alignment with mating gears
This level of machining prevents timing jitter and preserves the compressor’s designed compression ratio.
5. Optimized Lubrication Channels & Surface Treatment
The gear surfaces are finished to reduce friction and ensure full lubrication coverage during operation. The smooth micro-finish helps maintain stable oil film thickness, reduces running temperature, and slows wear progression over long-term use.
6. Perfect Compatibility with Atlas Copco Systems
Designed specifically for Atlas Copco screw airends, these gears offer:
- Direct fit installation
- Exact OEM pitch diameter and bore dimensions
- Matching keyway structure
- Seamless integration with OEM rotor shafts
No modifications to the compressor housing or drive system are required.
Working Principle
During compressor operation, the gear wheel transmits torque from the main drive shaft while precisely controlling the rotation angle between the male and female rotors. The stability of this phase relationship is critical—any deviation can cause efficiency loss, abnormal noise, or even rotor contact damage.
These gear wheels maintain extremely low backlash and high alignment accuracy, ensuring:
- Consistent compression chamber volume
- Lower internal leakage
- Improved energy efficiency
- Extended rotor and bearing life
Manufacturing Quality Control
To ensure performance and reliability, each gear wheel undergoes multiple quality inspections, including:
- Tooth profile and lead accuracy testing
- Hardness depth verification
- Dynamic balance test
- Surface roughness measurement
- Dimensional tolerance inspection
- Noise grade evaluation during simulated rotation
This strict QC ensures that every gear wheel performs equal to or better than the original OEM component.
Installation & Application Notes
These gear wheels are suitable for Atlas Copco screw compressors that specify the part numbers listed above. Installation requires proper alignment and torque settings to maintain rotor synchronization. It is recommended that the installer checks bearing condition and lubrication system performance at the same time to ensure optimal operation.
OEM Replacement Information
Compatible with the following Atlas Copco part numbers:
- 1616539800
- 1616539900
- 1092023052
