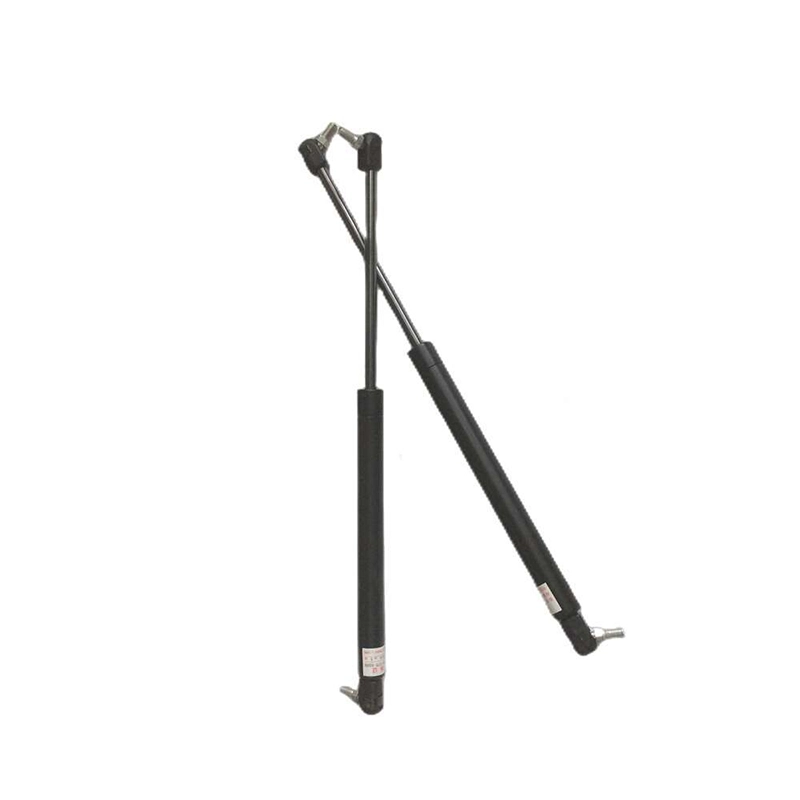

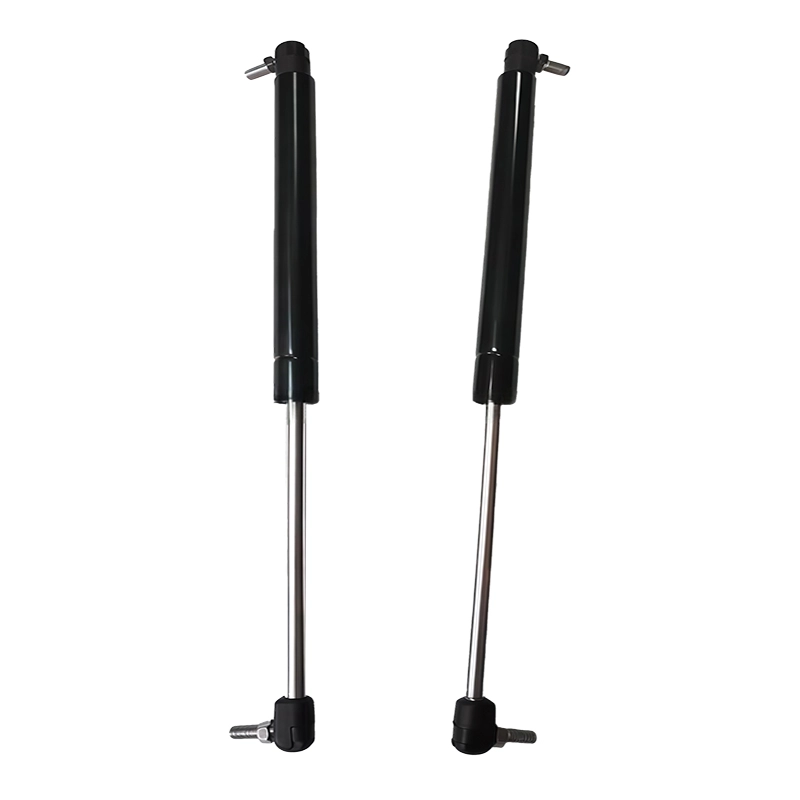

Gas Spring 22192728 39592951 for Ingersoll Rand Air Compressor
Durable gas spring assembly designed for Ingersoll Rand rotary screw air compressors. Ensures safe, effortless lifting and controlled closing of service panels and access covers. Built with high-grade steel, corrosion-resistant coating, and advanced sealing for stable performance under demanding industrial conditions.
| Application |
Screw Air Compressor |
|---|---|
| Material |
Metal ,Stainless Steel |
The Ingersoll Rand Gas Spring (Part No. 22192728 / 39592951) is a specially engineered component used to balance, lift, and stabilize the access panels and service doors of air compressor systems. It functions as a hydro-gas mechanical support, providing both lifting assistance and controlled descent, allowing technicians to perform maintenance safely and conveniently.
This gas spring is widely used across multiple Ingersoll Rand compressor models, designed to withstand continuous opening and closing cycles without fatigue or performance degradation. It combines precise damping control with robust mechanical stability, ensuring long service life even in high-temperature and oil-contaminated environments.
Working Principle and Structure
Unlike a conventional coil spring, this gas spring utilizes nitrogen gas compression within a sealed cylinder to generate lifting force. As the piston rod moves, the gas pressure provides a uniform counteracting force, while a thin layer of oil within the cylinder ensures smooth and damped movement at both ends of the stroke.
This model adopts a double-acting oil-damping structure, effectively controlling the final closing speed to avoid panel slamming or sudden pressure impact. The rod motion is carefully calibrated to match Ingersoll Rand’s specific panel weight and hinge geometry, providing a stable and predictable movement every time the door is operated.
Material and Surface Treatment
The gas spring 22192728 / 39592951 is made with automotive-grade precision materials, designed to maintain mechanical integrity over tens of thousands of operations.
- Cylinder Body: High-strength seamless steel tube, precision-honed for low friction and tight gas retention.
- Rod: Hardened carbon steel with multi-layer hard chrome plating, ensuring wear and corrosion resistance.
- End Connectors: Zinc-nickel plated steel or stainless-steel ball joint ends for rigid mounting.
- Sealing Components: NBR or FKM elastomers that resist oil, heat, and gas leakage under prolonged use.
The outer surface is treated with electrophoretic or black oxide coating, forming a dense anti-rust layer suitable for compressor enclosures exposed to oil mist, vibration, and temperature variation.
Performance Characteristics
Each gas spring is precisely pressurized and calibrated for its specific load-bearing function.
Key performance features include:
- Stable Lifting Force: Uniform pressure throughout the stroke for consistent support.
- Smooth, Silent Operation: Advanced damping oil minimizes noise and vibration.
- High Fatigue Strength: Proven resistance to repeated compression and extension.
- Corrosion Resistance: Tested for over 240 hours in salt spray conditions.
- Temperature Resilience: Maintains optimal performance between –20°C and +80°C.
Leak-Proof Construction: Dual sealing structure prevents nitrogen or oil escape even after long-term use.
Manufacturing Precision and Quality Assurance
Each Ingersoll Rand gas spring is produced under a controlled assembly process that includes gas charging, pressure calibration, and 100% functional testing.
Key quality checkpoints:
- Dimensional Accuracy Check – ensures perfect fit with OEM brackets.
- Dynamic Pressure Verification – confirms stable force output throughout motion.
- Seal Integrity Testing – prevents micro-leakage under long-term pressure.
- Cycle Endurance Testing – validated for over 50,000 full-stroke cycles.
Every unit is serialized for traceability, ensuring full compliance with Ingersoll Rand OEM standards.
Application and Compatibility
This gas spring model fits various Ingersoll Rand rotary screw air compressors, including:
- Panel support systems on side or top service doors
- Protective housing lids and electrical cabinet covers
- Equipment frames requiring counterbalanced motion
It serves as a direct-fit OEM replacement for the original Ingersoll Rand parts 22192728 and 39592951, offering equal or improved mechanical stability. Installation does not require modification or adjustment of the mounting points.
Installation and Maintenance Guidelines
To ensure proper performance and longevity:
- Mount the gas spring with the rod facing downward to maintain oil lubrication.
- Avoid side loading or twisting during installation.
- Keep the piston rod clean; do not apply grease or paint to its surface.
- Replace both gas springs simultaneously when installed in pairs to maintain balance.
- Store unused units in a vertical position at moderate temperatures.
The unit is completely sealed and maintenance-free—no recharging or refilling is necessary during its service life.
Performance Validation
Laboratory tests confirm this gas spring’s ability to retain over 95% of its original pressure even after extensive cycling and vibration exposure.
Its optimized damping curve ensures safe closing motion, especially for heavier Ingersoll Rand compressor panels, protecting both the machine casing and the operator.
Conclusion
The Ingersoll Rand Gas Spring (22192728 / 39592951) provides reliable lifting and damping for compressor panels, delivering excellent force consistency, smooth movement, and outstanding durability. Engineered with precision sealing and corrosion-resistant materials, it ensures uninterrupted compressor access and long-lasting service in industrial environments.
Whether you’re replacing worn-out supports or upgrading existing equipment, this gas spring offers the OEM-level performance and dependability that Ingersoll Rand compressors demand.
