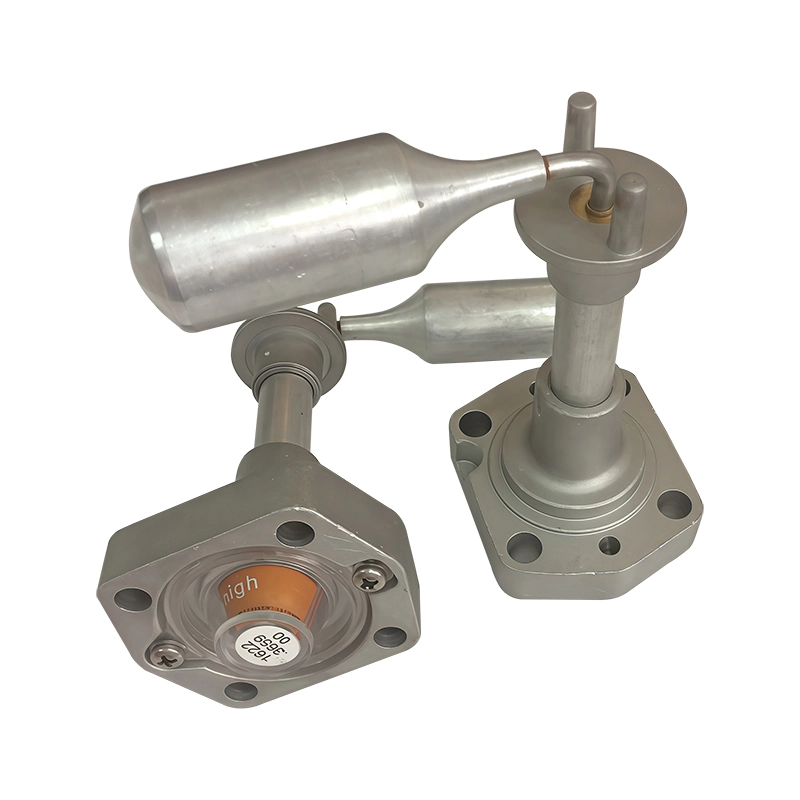

Oil Level Indicator Sight Glass for Screw Air Compressors Part 109265600
Modular oil level gauge 109265601 / 109265600 for screw compressors. Reinforced body, optimized sealing interface, extended pressure resistance, and stable oil-level visibility under continuous industrial operation.
| Application |
Screw Air Compressor |
|---|---|
| Material |
Plastic ,Stainless Steel |
The 109265601 / 109265600 Oil Level Gauge is designed specifically for screw-type air compressors requiring stable lubricant monitoring in high-pressure oil circuits. Compared with general-purpose sight glasses, this model adopts a modular housing structure and a reinforced sealing interface, enabling the unit to withstand higher internal pressure while maintaining consistent clarity and mechanical strength.
It is often used in compressors that operate with frequent load variations and fluctuating crankcase pressure. This oil level gauge ensures that operators can always observe real oil levels with minimal distortion or fogging, even after prolonged exposure to heat and synthetic lubricants.
Key Product Features & Engineering Advantages
Modular Housing for Better Structural Stability
Unlike standard one-piece sight glasses, the 109265601 / 109265600 models use a modular housing design. This engineering choice brings several benefits:
- Better stress dispersion under internal pressure
- Reduced risk of deformation at the viewing window
- Improved housing rigidity, allowing the gauge to maintain dimensional stability during thermal expansion
- Longer service life, especially in compressors with continuous cycling
The modular structure also simplifies replacement, minimizing downtime.
High Pressure and Temperature Resistance
This oil level gauge is engineered for systems where internal tank pressure rises rapidly during load transitions.
- The viewing lens is built from heat-stabilized polymer or tempered glass, resisting bulging or warping.
- The body maintains strength at temperatures commonly seen in screw compressor lubrication chambers.
- Pressure cycling tests ensure the gauge can endure repeated pressure pulses without seal fatigue or body cracking.
This makes it suitable for older machines and models with higher mechanical vibration.
Enhanced Sealing Geometry (Leak-Proof Interface)
The sealing interface of 109265601 / 109265600 has been redesigned and improved compared to standard oil level gauges.
Notable upgrades include:
- Thicker gasket seating area for uniform compression
- Anti-creep profile preventing gasket displacement
- Material resistant to swelling in synthetic oils
- Reduced risk of micro-seepage during thermal expansion
The result is a consistently reliable oil-tight connection that remains stable over thousands of operating hours.
Chemical-Resistant Materials
The gauge is fully compatible with:
- PAO synthetic compressor oils
- Diester and polyglycol lubricants
- Mineral-based compressor oils
- Additive-heavy lubricant blends
Both housing and seal materials resist oxidation, hardening, and stress cracking, even under continuous oil exposure.
Application Scenarios
The 109265601 / 109265600 oil level gauge is suitable for:
- Standard industrial screw compressors
- High-duty machines with frequent load/unload cycles
- Units operating in high-temperature compressor rooms
- Systems requiring upgraded pressure endurance
Its modular construction makes it especially ideal for maintenance-intensive facilities where gauges are replaced regularly.
Quality Control & Testing
Each unit undergoes multi-stage testing including:
- Thermal aging simulation
- Pressure pulse cycling (multi-thousand cycles)
- Lens clarity test under synthetic oil immersion
- Seal compression-set evaluation
- Thread torque and deformation check
These ensure the gauge performs reliably even in long-running industrial environments.
Why Choose the 109265601 / 109265600 Oil Level Gauge?
This model offers a more robust mechanical structure than typical sight glasses, with a strong focus on long-term sealing stability and pressure endurance. For operators seeking reliable oil monitoring and reduced leakage risk in demanding compressor environments, this gauge delivers superior durability and clarity.
